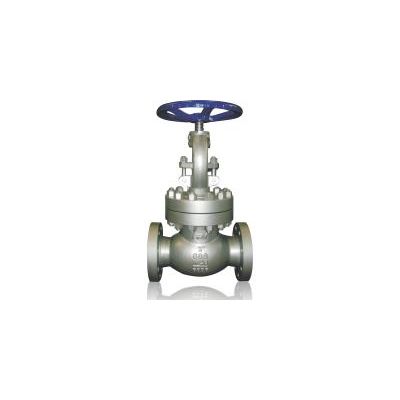

Class - Cast Steel Globe Valve
FromFBV Inc.
Sizes NPS 2 to NPS 24. Class 150 to Class 2500. RF, RTJ, or BW. Outside Screw & Yoke (OS&Y), Rising stem. Bolted Bonnet or Pressure Seal Bonnet.
Most popular related searches
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN STANDARD
- Design & manufacture according to BS 1873
- Face-to-face according to ASME B16.10
- End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
- Test & inspection according to API 598
- Also available per NACE MR-0175, NACE MR-0103,
- ISO 15848, API 624
