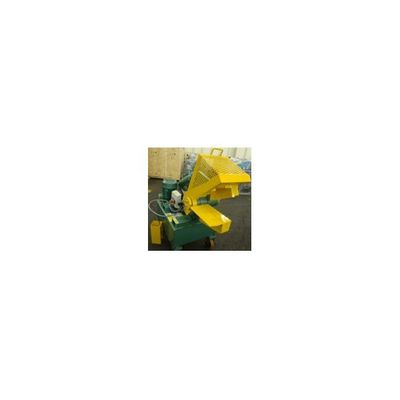

McIntyre - Model 407 -CAT Shear
407 Shear and Cat shear with 16`` Blade. The 407 is a robust and powerful shear designed to be durable enough for the most difficult working environments, it is used extensively throughout the world for cropping both ferrous and none ferrous metals. The 407 can be moved on its own wheels or it has fork lifting slots in the body making it a truly versatile shear.
The Vortex 407 CATShear has been purpose-built for recovering valuable precious metals from catalytic converters. The catalytic converter is simply placed in the jaws and is controlled by a movable foot pedal. The pinched end of the converter is then re-opened on a side bracket allowing the contents to be poured out. This is a modification to the standard 407 that can be easily removed for standard shearing activities.
- Machine dimensions: 62.5``x 28``x 53``
- Blade length: 16``
- Tip to tip opening: 8.8``
- Shearing height: 36.8``
- Weight with oil: 1980 lbs
- Oil capacity: 44 Gallons
- Noise level: 75 dBA +/-3
- Cut control: Single cut repeating
- Standard electrics: 3ph 480v
- Power rating: 10hp
- Motor speed: 1750rpm
- Max system pressure: 3100psi
- Max shear force: 90 Tons
- Cut speed - fully open: 11 Dry cuts per minute
- Cut speed - 40% open: 28 Dry cuts per minute
- Cutting capacity - mild steel 2.25`` round bar 1.75`` Square bar
