ResinTech - Model CG8-C -Cation Exchange Resin Coarse Mesh Strong Acid Gel 8% DVB, Na Form
ResinTech CG8-C is a sodium form 8% crosslinked gel strong acid cation resin. CG8-C is a very coarse mesh resin with low surface area and high void volume. ResinTech CG8-C is intended for use in high flow rate applications where the lowest possible pressure loss and highest possible flow rate is needed. CG8-C is available in the sodium.
- Polymer Structure: Styrene/DVB
- Polymer Type: Gel
- Functional Group: Sulfonic Acid

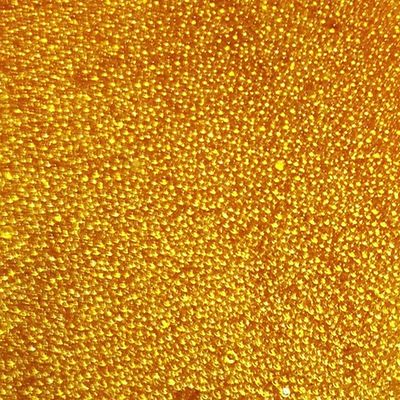

- Physical Form: Spherical Beads
- Ionic Form (as shipped): Sodium
- Total capacity: > 2 meq/mL (Na Form)
- Water Retention: 42 to 49 percent (Na Form)
- Approximate Shipping Weight : 51 lbs/cu.ft. (Na Form)
- Screen Size Distribution : 16 to 30 (U.S. Mesh)
- Maximum Fines Content: 1 percent (less than 50 Mesh)
- Minimum Sphericity: 93 percent
- Uniformity Coefficient: 1.4 (Approximate)
- Resin Color: Amber
Highly Uniform Coarse Particle Size
16 to 30 mesh size provides low pressure drop in high flowrate applications and helps prevent suspended solids from restricting flow
Low Color throw
Superior Physical Stability
93% plus sphericity and high crush strengths together with carefully controlled particle distribution provides long life and low pressure drop
Complies With US FDA Regulations
Conforms to paragraph 21CFR173.25 of the Food Additives Regulations of the US FDA
