ResinTech - Model CG10-UPS -Cation Exchange Resin Strong Acid Gel 10% DVB, Na Or H Form

• Polymer Structure: Styrene/DVB
• Polymer Type: Gel
• Functional Group: Sulfonic Acid

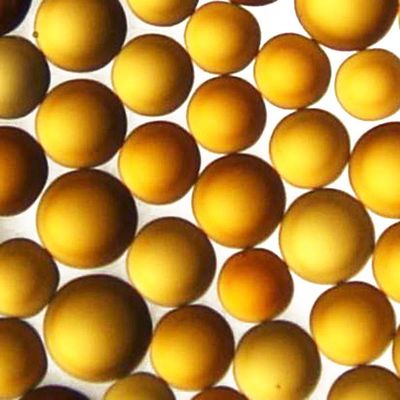

• Physical Form: Spherical Beads
• Ionic Form (as shipped): Sodium or Hydrogen
• Total capacity: > 2.2 meq/mL (H Form) / > 2.2 meq/mL (Na Form)
• Water Retention: 39 to 45 percent (H Form) / 39 to 45 percent (Na Form)
• Approximate Shipping Weight : 53 lbs./cu.ft. (H Form) / 53 lbs./cu.ft. (Na Form)
• Swelling: 4 to 8 percent Na to H
• Screen Size Distribution : 20 to 40 (U.S. Mesh)
• Maximum Fines Content: 0.5 percent
• Minimum Sphericity: 95 percent
• Uniformity Coefficient: 1.25 (Approximate)
• Resin Color: Amber

Highly Uniform Particle Size

20 to 40 mesh size, provides low pressure drop and superior kinetics

10% Divinylbenzene

Gives greatly increased life where resin degradation due to oxidative effects are anticipated

Superior Physical Stability

95% plus sphericity and high crush strengths together with carefully controlled particle distribution provides long life and low pressure drop

Complies With US FDA Regulations

Conforms to paragraph 21CFR173.25 of the Food Additives Regulations of the US FDA

Softening

ResinTech CG10-UPS is a 10% crosslinked cation resin optimized for use in condensate softeners, high flow rate applications, and other applications where high physical and chemical durability are more important than high chemical efficiency. CG10-UPS is proven to have a long useful life, even in heavily chlorinated waters where other cation resins do not last.

Demineralization

ResinTech CG10-UPS can be used as the cation component in a variety of demineralization configurations where a hydrogen form cation resin is coupled with a hydroxide form anion resin. The high density of CG10-UPS provides ideal separation in polishing mixed beds. CG10-UPS has higher total capacity and lower chemical efficiency compared to CG8-UPS.

Packed Beds

ResinTech CG10-UPS has a very narrow particle size range. The uniformity allows a slightly smaller bead size to be used which results in faster exchange of ions, more efficient regeneration and lower leakage. CG10-UPS is ideal for packed beds and other types of countercurrent ion exchangers where consistent operation is important cycle after cycle. Higher void space and minimal fine mesh beads provides low pressure loss and helps prevents channeling and other distribution problems. Packed beds typically have limited freeboard (only a few inches with the resin in the swollen form).
