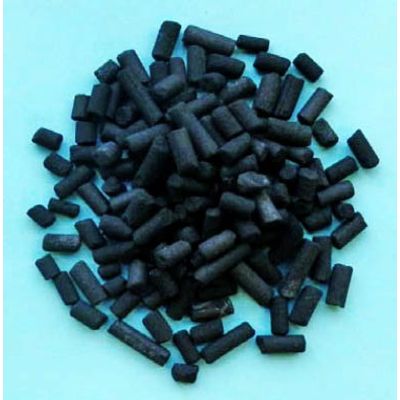

CCG - Model CC-IPA -Impregnated Activated Carbon

STANDARD PACKAGING:

CC-IPA is available in 55 lb. bags or 1,100 lb. bulk bags. Other sizes available upon request.

SAFETY MESSAGE
Wet activated carbon removes oxygen from air, causing a severe hazard to workers inside carbon vessels. Confined space/low oxygen procedures should be put in place before any entry is made. Such procedures should comply with all applicable local, provincial/state and federal guidelines.

• Particle type: Pelletized, 4.0 mm x 6.0 mm
• Mean particle diameter:  4.7 mm (min)
• CCl4 activity:  60 % (min)
• Iodine no:  1000 mg/g (min)
• Surface area:  1000 m²/g (min)
• Hardness:  95% (min)
• Typical density 51 lbs/ft³ (0.82 g/cc)
• Moisture (as packaged):  12% (max)
• Ammonia adsoption efficiency:  95%*
• pH:  1-2
• Max. head loss @ 50 fpm superficial velocity through a dense packed bed, in wc/ft:  1.9 (max)

*95% adsorption efficiency under ideal conditions.  Performance under actual operating conditions may vary.
