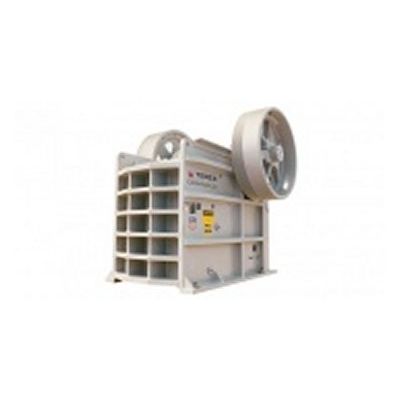

- Model JC Jaw Series - Cedarapids

0

As the demands of business get tougher, and the landscape more competitive, productivity becomes more and more important. And, the Terex Cedarapids line of JC jaw crushers has a proven track record for unmatched performance and productivity. Inside and out, the advanced engineering of our jaws sets industry standards with features like the pitman drop-forged 4340 chrome-moly-nickel steel shaft and spherical self-aligning roller bearings. Each machine offers you an array of competitive advantages- from product quality to high throughput capacities to low operational costs.

  • Fabricated, stress-relieved welded steel base
  • Rib-reinforced side plates
  • Close-tolerance machining of jaw plate backs and seating surfaces
  • Reversible key plates through model 2438
  • Drop-forged, heat-treated, chrome-nickel-steel overhead eccentric shaft
  • Cast steel pitman
  • Spherical self-aligning roller bearings
  • Hydraulic assist bearing removal for both pitman and side bearings on models 3648, 3660, 4248, 5748 and 5460
  • Hydraulic/shim toggle seat adjustment (discharge opening) except wedge adjustment on 1016 and 1020
  • One smooth and one grooved flywheel
  • Split-hub flywheels
  • Standard left-hand drive (face tension spring)

  • V-belt drives
  • Grooving second flywheel
  • Circulating oil lubrication system with reservoir and low-oil alarm for 1836 and above
  • Steel skid for crusher and motor for 2236 and above
  • Motor platform for 2236 and above
  • Operator's platform, ladder, crusher hopper for 2236 and above
  • Stationary grizzly with bypass chute for 2236 and above
  • Under crusher discharge chute to belt conveyor, end or side discharge for 2236 and above
