Top Machinery - Model TPZXG -Centre Driven Clarifier Scrapper

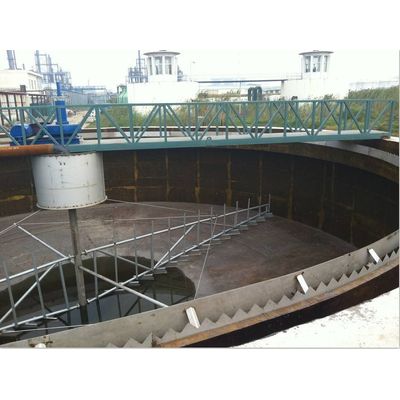

Centre Driven Clarifier Scrapper, the load of the whole scrapper acts on the center of the working bridge. The scrapper is driven by the central driving mechanism. The directional scrapper scrapes the sludge from the bottom of the sedimentation tank into the central sludge collecting tank and discharges it from the sludge tank by hydrostatic pressure.
Most popular related searches
sludge tank
sludge scraping
lifting device
sedimentation tank
sludge scraper
clarifier system
sludge collection
sedimentation tank sludge
clarifier scraper
bottom sediment

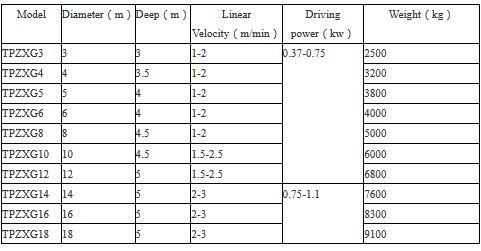

- Model：：TPZXG
- Price：Non - standard customized
- Package: Wooden box
- Place of Origin：China
- Minimum order quantity：1 Set
- Simple structure, easy operation and high mud scraping efficiency
- Sludge scraping at the bottom of the pond is driven by a deceleration drive mechanism with compact structure with high mechanical efficiency.
- The oblique scrapper has good continuity and high efficiency of collecting mud. The rubber scrapper is installed under the stainless steel scrapper to ensure that the scraping mud is thoroughly clean and there will be no floating mud.
- Electrical and mechanical overload protection is adopted in the transmission part, which makes the operation safer and more reliable.
- The underwater part is made of stainless steel with long corrosion resistance and service life.
- Lifting device can be selected, which can be divided into manual and electric.
