Republic Manufacturing - Model RBX-250 -Centrifugal Blower
Republic Centrifugal Blowers are designed for both pressure and vacuum applications. As a preferred alternative to compressed air, centrifugal blowers provide clean, dry, oil-free air at lower operating costs. The best-in-class RBX-Series attains 80% peak efficiencies, further reducing operating costs, and offers up to 8 times longer bearing life than standard blowers.
Most popular related searches
centrifugal blower
blower
centrifuge
motorized pulley
labyrinth seal
monitoring bearing
compressed air
precision balance
bearing temperature monitoring
stainless steel plate magnet
- SKU: 201-2500
- Category: Blowers
- Brand: Republic

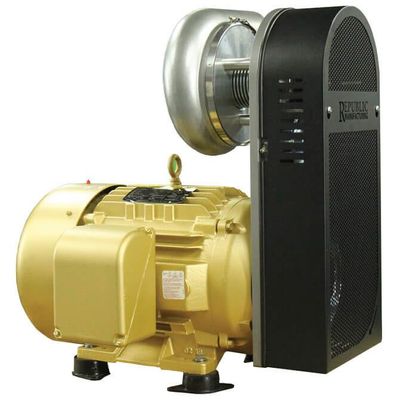

The Republic RBX-250 centrifugal blower is designed for efficiency, endurance, and optimal performance in high-demand applications. This blower provides up to 2600 cfm with pressure greater than 100 in.H2O, while attaining 80% peak efficiencies requiring only 15-40 hp.
- 80% peak efficiency allows for lower power consumption, smaller motors, and less cost
- Longevity - 7-8 times more bearing life
- Easy to replace bearing housing assembly
- Quick-release filter
- Rotatable blower outlet
- Precision balanced shaft/impeller assemblies
- Greased-for-life ceramic hybrid bearings
- Two-piece labyrinth seals
- Stainless steel blower pulley
- Zinc plated steel motor pulley
- Aluminum blower housing
- 16-Groove belt for long life
- Chemically resistant packages
- ANSI flanges on inlet/outlet (without filter)
- Tube adapter (without filter)
- Optional discharge flange
- Installed thermocouples to monitor bearing temperature
- Horsepower Available: 15 hp, 20 hp, 25 hp, 30 hp, 40 hp
- Max Flow: 2,675 cfm
- Max Pressure:111 in.H2O
- Max Vacuum: 95 In.H2O
