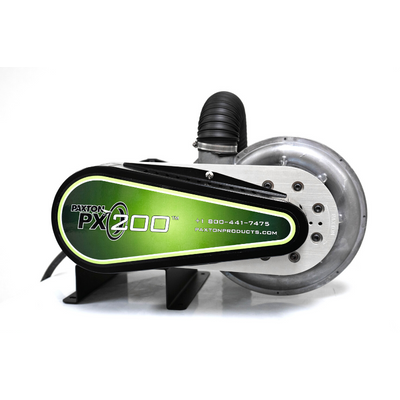

Paxton - Model PX-Series -Centrifugal Blower System
The ultra-high efficiency PX-Series Centrifugal Air Blowers use state-of-the-art impellers and scroll designs to achieve blower efficiencies as high as 80%, to generate 33% more air flow than a standard centrifugal blower. This added efficiency means that when switching from a standard centrifugal blower (like Paxton`s own AT-Series blowers), often 5 horsepower less is needed to achieve the same air flows and pressures.
The smaller motor uses substantially less electricity, yielding savings of over $2,400 per year. The PX-Series Centrifugal Air Blowers are available in 2-20 hp, providing air flows from 100 cfm to 1500 cfm, and pressures of 30`` H2O to 80`` H2O. All of Paxton`s PX-Series Centrifugal Air Blowers come with an industry-best 3-Year Warranty.
Advanced Belt Design:
Neoprene rubber reinforced with Aramid cord that lasts 2x longer than standard polyester belts. Neoprene provides high grip and flexibility, extending life; Aramid adds strength and reduces strength to extend belt life. Idler/tensioner uses 2 bearings for long life and smooth operation.
- Highly Efficient for Lower Energy Costs: state-of-the-art impeller designs produce more airflow at lower blower speeds
- Highly Reliable: high load capacity bearing at rated speeds for long bearing life, with an unmatched 3-Year Warranty
- Longer Service Life: PX-Series Blowers are designed to use minimum belt tension for all pulley ratios - extending the life of the blower system
- Low Maintenance: two-stage filter media gives improved performance and longer life with longer lasting belts, and a unique belt tensioning system
- Quiet Operation: advanced engineering and precision manufacturing reduce vibration and noise, while also being equipped with a silencer cartridge to reduce noise by 3 dBA
- Stringent Quality Control Testing: constructed of the highest quality parts held to the strictest standards, every Paxton blower goes through comprehensive performance, vibration, and noise testing before leaving the factory
- Space Saving Design: versatile mounting and outlet positions for tight spaces; all Paxton blowers meet IEC and NEMA standards
- Versatile Application Options: can be configured for drying, vacuum hold down, conveying, air rinsing, and other applications
- Custom-Engineered: all of Paxton`s Air Delivery Systems are custom-engineered for your specific products, line speeds, and configurations
- Industry-Best Blow-Off Systems: unmatched performance in drying, blow-off, and air rinsing applications with a wide range of Air Knives, Air Manifolds, and Nozzles to produce an airstream that fits a wide range of product sizes, shapes, and line configurations
