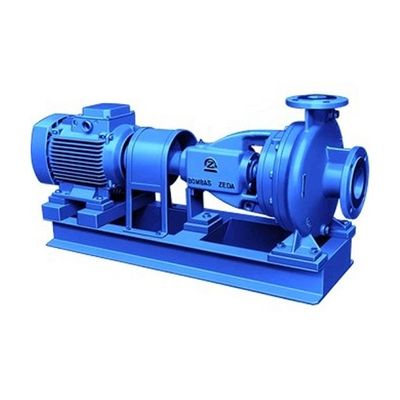

Bombas Zeda - Model ZQ-ZQR Series -Centrifugal End Suction Pumps
FromBombas Zeda
Single-stage centrifugal pumps manufactured according to UNE-EN ISO 2858 (DIN-24256). General supplies, industry, petrochemicals, cogeneration, conditioning, fire networks, irrigation, multiple services for clean or lightly charged fluids.
Most popular related searches
end suction pump
centrifugal pumping
centrifugal pump
suction pump
centrifuge
end suction centrifugal pump
- Standard Production H º F º. Option can be made in whole or in part in bronze, stainless steel, nodular, and so on.
- Closed impeller. In semi-open impeller option.
- IP-55 motor, IP-23, Atex, etc. Standardized I.E.C.
- speeds between 1,500 and 3,600 r.p.m.
- Temperatures to 120 º C (248º F) in the ZQ series and 180 º C (356º F) in the series ZQR.
- Sealing by mechanical seal or Soft packed gland.
- Suction flange and drive top center front.
- Flanges DIN-2532 PN-10 or DIN-2533 PN-16. On request ANSI 150, 300 or 600 lbs.
- Clockwise rotation seen from the coupling.
- ATEX-certified manufacturing optional.
