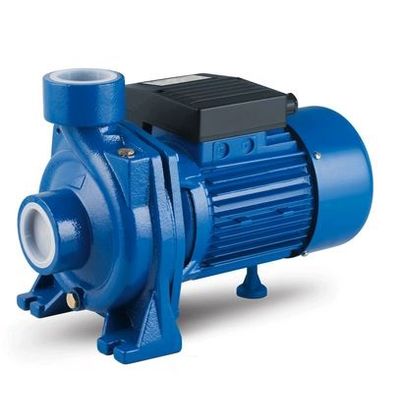

Milestone - Model HF Series -Centrifugal Pumps
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates. Suitable to pump clean water or non-aggressive liquids charged with small solid impurities. To be used in flow irrigation systems in gardening and agriculture and in industrial fittings.
Most popular related searches
centrifugal pumping
centrifugal pump
centrifuge
water pump
head pump
centrifugal impeller
valve operator
water pump system
pump system
impeller pump
OPERATING LIMITS
- Suction lift up to 6-8m with foot valve.
- Maximum operating pressure: 8 bar.
- Maximum ambient temperature: +40℃ .
- Liquid temperature up to +90℃ .
- Maximum altitude +1000m.
PRODUCTION STANDARD
- IEC 60034-1 IEC 335-1
- IEC 34-1 ISO 2548
DESIGN FEATURES
- Pump body: cast iron.
- Impeller: cast iron.
- Motor shaft: AISI1045.
- Mechanical seal: NBR/ Graphite/Ceramic.
- Internal thermal protector.
MOTOR
- Single phase power supply with capacitor
- permanently activated.
- Insulation class: B
- Protection: IP44
- Speed of rotation:2850rpm
- Continuous duty: S1
