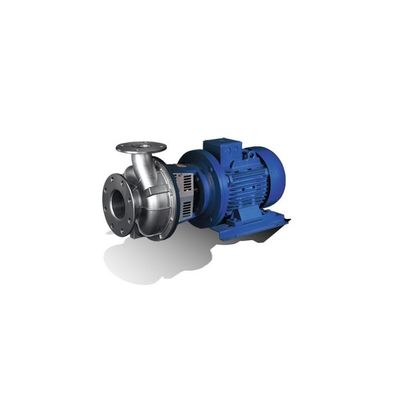

Salvatore - Model HG (HGM-HGA) -Centrifugal Pumps
Centrifugal pumps with semi-open impeller. Flanges unions PN 16 or DIN 11851 (food industry). HG pumps: HG pumps have the same interaxis of ISO 5199 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.
Most popular related searches
dissolved air flotation system
centrifugal pumping
centrifugal pump
solvent recovery process
air flotation system
dissolved air flotation
abrasive slurry
flotation system
industrial water
air flotation
HG pumps can handle slightly contaminated liquids or non abrasive slurries in the chemical and petrochemical industries; well suited for handling liquids with gas contents up to 10%. They are also used in general industrial service, foodstuff industry, dissolved air flotation systems, sugar industry, water/solvent recovery process, power stations, steel industry, textile and small evaporator plants.
- HGM - HGA: Close-Coupled with standard B5 electric motor.
- Series HGM: Flanged unions UNI PN 16
- Series HGA: DIN 11851 unions (food applications)
- Maximum flow rate: 200 m3/h
- Maximum head: 60 mwc
- Maximum pressure: 8 BAR
- Maximum temperature: 120° C
Materials
- Standard: AISI 316.
Hydraulic
- Open impelle
