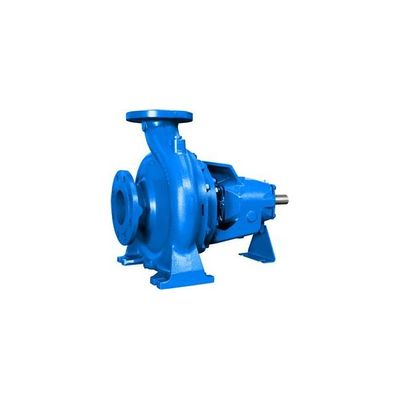

Salvatore - Model RN (RN-RNM-RNL) -Centrifugal Pumps
Centrifugal pumps with closed impeller built in compliance with DIN 24255. RN pumps: Centrifugal pumps with closed impeller according to EN 733 norms. Discharge sizes from DN 32 to DN 150.
Most popular related searches
centrifugal pumping
centrifugal pump
centrifuge
fire fighting
water supply
centrifugal impeller
water heating
industrial water
industrial water conditioning
plant fire fighting
RN pumps can handle clean and non-aggressive liquids for the pump materials (contents of solids up to 0,2% max). They are also used for non aggressive industrial liquids, water supply, heating, conditioning, cooling and circulation plants, civil and industrial applications, fire-fighting plants and irrigations.
- RNB: Independent frame with oil lubricated bearings.
- RNL: As above with lantern for coupling to flanged motors.
- RNM: Close-Coupled with electric motor.
- RNV: Vertical column.
- Maximum flow rate: 480 m3/h
- Maximum head: 90 mwc
- Maximum pressure: 10 BAR
- Maximum temperature: 130° C
Materials
- Standard: GJL200 Cast Iron with AISI 430 or AISI 316 shaft and Cast Iron GJL200 or BRASS according to the pump size.
Hydraulic
- Closed impeller
