C-CUBE - cGMP Pre-engineered Self-sufficient Cleanroom Modules

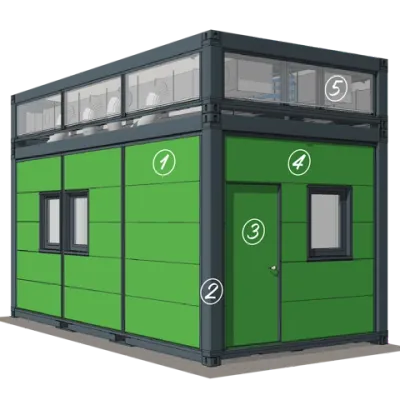

C-CUBE focuses on creating modular cleanroom facilities designed around cGMP standards. The facilities are composed of pre-engineered, self-sufficient modules optimized for flexibility, efficiency, and compliance. The design incorporates two main components: a main module housing the cleanroom and a technical module with ducting and utilities. This modular system allows for easy transportation globally and positions windows and doors wherever needed. Composed of insulated double skin cladding and sandwich panels, the cleanroom design supports configuration to meet ISO 14644-1 and cGMP standards, achieving ISO 5 to ISO 8 classifications. HVAC systems are integral, sized according to module numbers and desired cleanroom grades, reaching up to 50 exchange rates per hour. Automated IoT systems enable facility-wide monitoring, aiding smooth and non-disruptive operations even during service or modifications. This modular approach reduces project costs, speeds up construction, and accelerates time to market, with modules customizable for a variety of life sciences applications, including vaccine production and BSL2 labs.
Our concept is based on independent, pre-engineered self-sufficient cleanroom modules with HVAC, electricity, utilities and embedded IoT.
15 years of pharmaceutical engineering experience combined with market knowledge from our partner SPgroups has been integrated into our smart modular concept.
- 3 - THE (UldNROO/H/mE4
The cleanroom is fully flushed and complies with ISO 14644-1 and cGMP standards.
Inside the cleanroom module, we can achieve an ISO 5 to ISO 8 dass (Grade B to D) depending on your requirements.
We can reach this grade level due to our HVAC design, 2.7m clear height inside the cleanroom and an airtight construction.
The cleanroom partition inside the module as well as the ceiling is completely modular, and can be modified to suit your needs.
Standardization to speed up all phases of your project
We standardized the design across our three modules, facilitating manufacturing, enhancing quality and simplifying the supply chain. This simplification approach helps in reducing cost and accelerating the construction phase.
The validation phase is also easier and faster as once it is inspected by the regulatory authority, the module is no longer considered an unknown designed space.
Design, construction, and validation phases are completed faster, reducing time to market for your project.
Standardization does not prevent customization. Windows, doors, lighting, electrical appliances, filters, and utility plates can be placed anywhere within the cleanroom. Components such as airlocks; air showers; cart, hatch and window pass-throughs; as well as clean room furniture and gown rooms are all incorporated into the cleanroom module design.
Designed to keep your business running smoothly
Our modular concept limits disruption during any servicing or future modification.
The air handling unit, electrical room and black & white utility generator are separated from the cleanroom area, allowing services and maintenance to occur without interrupting operations.
Once commissioned, your facility is scalable or re-purposable.
Our double skin technology can be removed from the outside without compromising the existing cleanroom and without interrupting your business activity.
IoT and HMI are embedded allowing for the complete monitoring of your activities. This provides you peace of mind knowing that you can monitor and ensure that optimal conditions are still being met while any servicing or maintenance is taking place.
Designed to be deployed anywhere
Our Smart modules are self-sufficient, requiring only a concrete slab with evacuation piping and power supply to be fully operational.
Each module is both the controlled environment as well as the building itself.
Your modular cleanroom can be purposed as a permanent facility, or it can be used temporarily. This flexibility greatly reduces the risk of commissioning a new facility in a remote or uncertain location.
