NeoTech RefleX - Model D222 UV -Chambers for Ultrapure Water Disinfection and Ozone Destruction
RefleX D222 UV Chambers are engineered to efficiently disinfect ultrapure water and facilitate effective ozone destruction, making them integral to advanced oxidation processes. Utilizing a patented technology that reflects 99.8% of 254 nm UV light back into the chamber, these chambers optimize UV exposure for maximum disinfection efficacy. They feature a compact design with a footprint 75% smaller than typical UV systems, equipped with a 22-inch high-output lamp. This design ensures minimized operational costs and a simplified maintenance schedule, as service visits are needed less frequently compared to other systems. The RefleX Controllers further enhance efficiency by enabling independent control of up to four chambers. Certified by NSF 50 and NSF 61, these chambers are suitable for diverse applications, ranging from microelectronics and food and beverage industries to municipal water treatment, thanks to their adaptable power requirements and real-time dosimetry.
An essential component in advanced oxidation processes and water disinfection, RefleX UV Chambers use patented technology to reflect 99.8% of 254 nm UV generated back into the chamber flow.
With a 75% smaller footprint than standard UV systems and 22” high-output lamp, RefleX D222 UV Chambers provide highly efficient performance with the lowest cost service schedule of any low or medium pressure UV system available.
Take command of more in less space.
RefleX Controllers provide the information you need at a glance – with the ability to control up to four treatment chambers independently from a simple menu.
Control up to four chambers from a tidy 8X9X4” footprint.

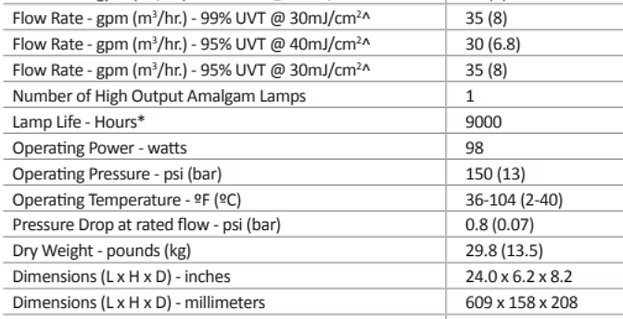

Flow Rate:
35 (8) gpm (m3/hr.)
95% UTV @ 40mJ/cm2
Lamps: One high-output amalgam lamp
Power: 240 watts with control box
- Compact footprint
- Vertical or horizontal mount
- Fewer lamps
- Up to 75% less energy use
- 120V or 230V single phase power
- No flow, no problem
- Real-time dosimetry
- NSF 50 and NSF 61 certification
- No-tool lamp change
- TUV safety certified
The NeoTech D222™ provides users an unparalleled level of engineering sophistication by maximizing UV distribution in a patented 99% reflective chamber.
This unique technical advantage also reduces the number of lamps and power requirements by up to 90% compared to standard UV system.

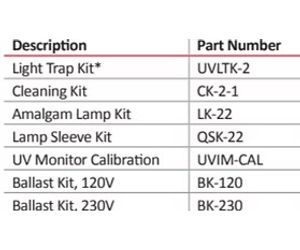

Minimal Maintenance
The service and maintenance requirements for the NeoTech D222™ are limited to three basic requirements:
Lamp Replacement:
No Tools Required
UV Monitor:
May be changed with a single screwdriver while the system is operating
Cleaning:
May be cleaned as needed in a CIP loop or manually brush
The NeoTech D222™ boasts the smallest footprint in its class. With as few as one-tenth as many bulbs compared to standard UV systems, it has the lowest operating cost and maintenance schedule in the field.
Higher reflectivity for higher transmissivity.
The UV transmissivity (UVT) of the treated water, combined with the flow rate through the unit, determine the UV dosage applied to the water. Particles in water typically absorb or reflect UV light which affects the water's UV transmissivity. NeoTech Aqua’s units are rated based on a UVT of 95%. The above graph illustrates the appropriate rating for the D222 based on varying UVT levels. The NeoTech Aqua Solutions technical team provides complimentary UVT analysis on customer-supplied water samples to ensure proper UV equipment sizing.
- Recreational Microelectronics
- Food and Beverage
- Life Science and Personal Care
- Commercial
- Industrial
- Cooling Towers
- Agriculture/Aquaculture
- Municipal
- Air Treatment
