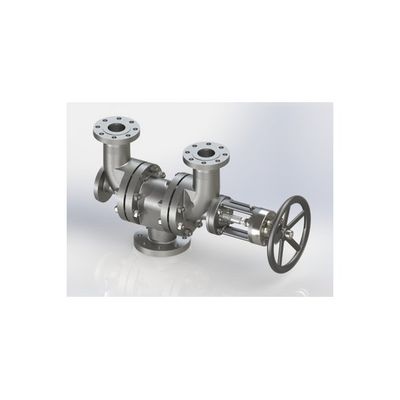

Changeover Valve / Selector Valve
SchuF Changeover Valves have been in reliable service in several industries over the past 40 years. Their main use is with dual-safety relief valves.
Most popular related searches
Changeover valves are switchover valves, switching flow from one pipeline to another. They are sometimes referred to as “selector” valves. Changeover valves are well suited to applications where mandatory pressure relief devices (rupture discs and relief valves) are installed as dual devices. The design of the changeover valve ensures that at least one of the two pressure relief devices is always in service and full relief flow is guaranteed during changeover. They are also widely used in Plastic and Polymer, Offshore, and Refining industries to handle process media.
Other applications include:
- switching from one production line to another,
- selecting to and from dual filtration systems,
- selecting to and from multiple heat exchangers,
- proportioning between two sources or terminals, refluxing or dumping, or manifolding where total shutoff of media flow is dangerous, offensive, or produces process stoppage
- Available as a standard changeover valve, a vacuum version and as a ditch valve
- Closing both valve outlets at the same time is impossible
- Deadspace free
- Temperature ratings of up to 700 degrees C
- Suitable for pressure rating of ASME 2500 or high vacuum
- Extremely low leakage (TA Luft) to atmosphere (with stuffing box, or bellow sealing)
- Cleaning in service through flushing port(s)
- Actuation by hand, pneumatic, or electrical
- Can be partially or fully jacketed.
- Can be combined with Multiport Valves
- High level of customisation is possible
Changeover valves are available in all materials including cast-steel; stainless steel, all nickel-based alloys, titanium, zirconium and others. Depending on application, standard sizes range from one inch to 24 inch. Larger sizes on request.
