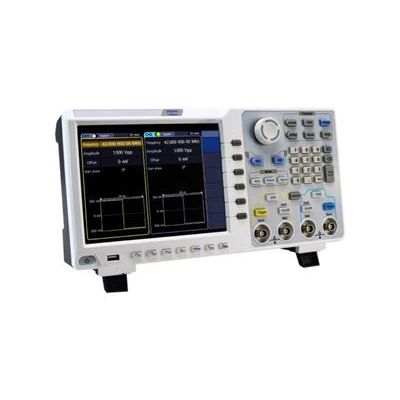

Berkeley - Model A2085 -Channel 80 MHz Arbitrary Waveform Generator

• Electronic Circuit Debugging
• Education and Training
• Circuit Testing
• Design and Manufacture
• Automobile Maintenance and Testing

• Max 1.25 GS/s Sample Rate
• Vertical Resolution: 14 bits, max 1M Arb Waveform Length
• 1 μHz Frequency Resolution
• 8-inch (800 × 600 pixels) Multi-Touch Screen
• High-Accuracy Frequency Counter Integrated
• Counter Supported Range 100 mHz - 80 MHz

• Display: 8” 800 x 600 pixels touch screen LCD
• Frequency Output: 80 MHz
• Channels: 2
• Sample rate: 1.25 GS/s
• Vertical Resolution: 14 bits
• Rise / Fall Time: < 5 ns
• Standard Waveform: sine, square, pulse, ramp, noise, and harmonic
• Accuracy: ±1 ppm, 0°C - 40°C
• Communication Interface: USB Host, USB Device, and LAN
• Power source: AC adapter for 100 to 240 V, 50/60 Hz or Rechargeable lithium-ion battery (Optional)
• Dimensions (H x W x D): 340 x 177 x 90 (mm)
• Weight: 2.50 kg

• Power Cord
• CD Rom
• USB Cable
• Q9 Cable
• Users Manual

*Subject to change without notice.
