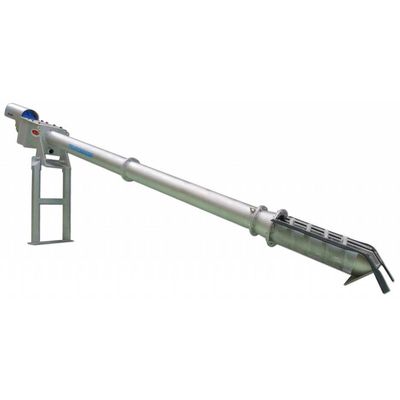

Defender - Model TTC -Channel Conveyor Screen

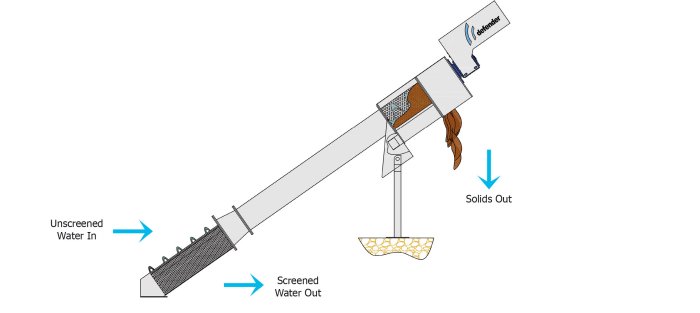

Screening, conveying and compacting of heterogeneous solids in a single unit. Equipped with a perforated mesh screen at the water inlet for greater filtration. Variable inclination up to 35º. Suitable for urban wastewater, agricultural industries and agri-food industries.
Most popular related searches
conveyor screen
urban wastewater
water flow rate
water flow rating
channel screen
paper mill
screw screen
water jetting
wastewater industry
textile wastewater

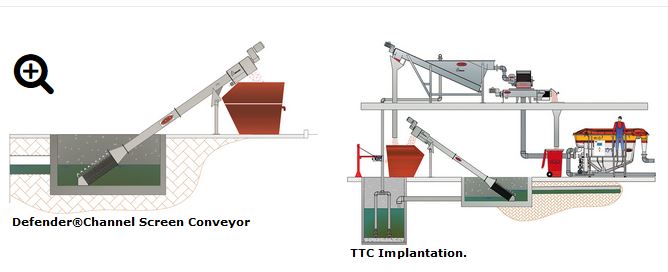

The Defender channel screen conveyor comes in two versions:
- Screen Conveyor: without the compactor vat.
- Compacter Screen Conveyor: with the compactor vat.
- No obstructions.
- High transport capacity.
- It enables the user to transport a great variety of materials.
- Easy to clean: The final spirals of the endless screw that is located in the channel are equipped with a brush on their outer surface that makes it possible to keep the meshwork constantly clean. A meshwork cleaning system using water jets is also provided for the compacting vat.
- The endless screw is resistant to wear and tear caused by friction: the inner surface of the conveyor pipe is reinforced to prevent wear and tear.
- Safety: the compacting vat is equipped with a cover at the top for inspection purposes.
- Versatile.
- Urban wastewater.
- Farming & agricultural industries.
- Food-processing industry: sugar refineries, meat processing plants, chemical industry, paper mills, etc.

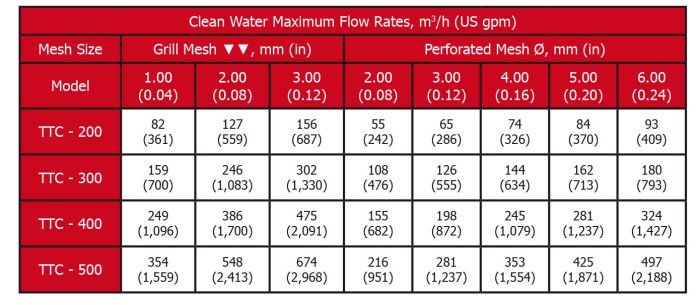

- A reduction factor has to be applied to the specified clean water flow rates, depending on the type and quantity of solids to be removed. Enquiries to our engineering department.

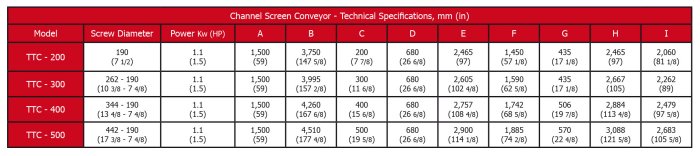

- The dimensions and technical specifications can vary slightly due to the ongoing development of the products by the engineering department of Toro Equipment S.L.

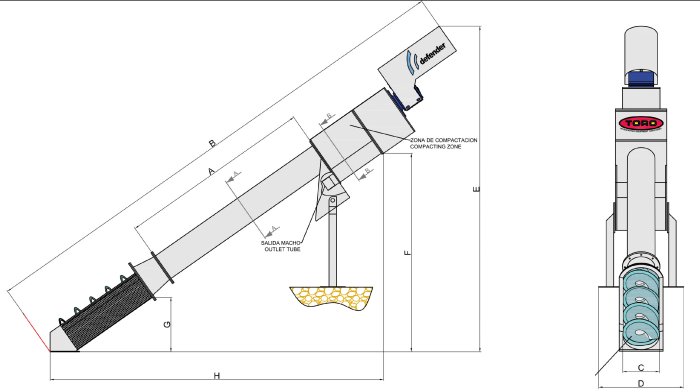

- When preparing your order ask for a specifications diagram.
- The dimensions and technical specifications can vary slightly due to the ongoing development of the products by the engineering department of Toro Equipment S.L.

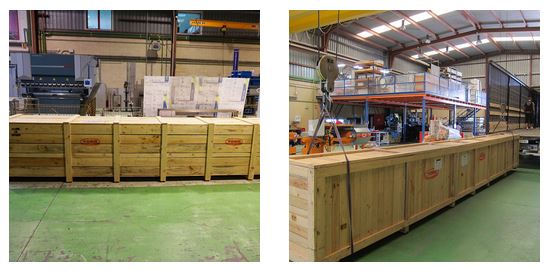

On request:
- Treated wood drawer transportation.
- Protective plastic wrapping of equipment for shipping.
- Containerization.
- Palletizing of small teams.
- Tanneries and textiles
- Urban wastewater
- Tanneries and textiles
- High oil content
- Laundry
- Biodiesel
- Paper Industry
- Foods
- Wineries
- Canneries
- Canned
- Dairy
