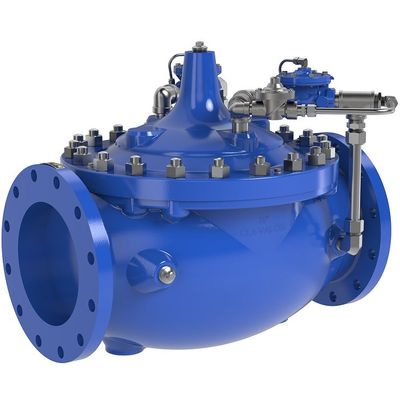

Cla-Val - Model 81-02 & 681-02 -Check Valve
FromCla-Val
The Cla-Val Model 81-02/681-02 Check Valve is a hydraulically operated No-Slam Check Valve with dual speed controls. This valve opens when the pressure at the inlet exceeds the discharge pressure. A gradual rate of opening prevents sudden opening surges. When a pressure reversal occurs, the higher downstream pressure is applied to the cover chamber through the control tube lines, and the valve closes drip tight.
Most popular related searches
check valve
waterworks valve
control valve
hydraulically operated valve
hydraulic check valve
particle sizing
waterworks
valve operator
This valve is ideally suited for use where a positive shutoff is required. The rubber disc assures tight sealing even if the fluid contains grit or other small-size particles. The simple backless design ensures reliable operation and freedom from leaks.
