Baykon - Model CW2 -Checkweighers

SHARE

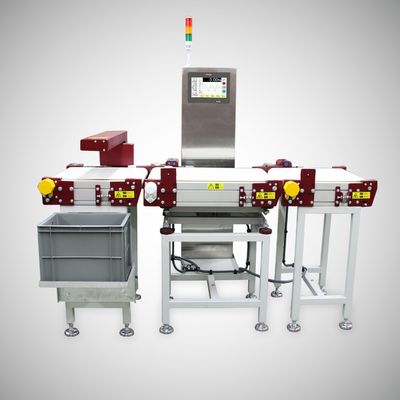

BAYKON BYK-CW2 Checkweighers designed for large and heavy packages, boxes or bags checking end of line completeness and weight capture up to 60 kg.

The product is weighed while it is on the production line. Weight zones are defined for all products in advance and items that are not within their weight zone are rejected during production and alarm signal is produced.


Single intelligent user interface with 7" touchscreen for product settings, statistics and exact control of the checkweigher.

Customer-specific configuration including height, width, length, location of the weighing terminal and construction materials with CW2F models.
Most popular related searches
checkweighing
checkweigher
weighing terminal
conveyor screen

Rugged and powerful design

  • High resolution load cell
  • Steel / Stainless Steel, IP65 construction
  • Asynchronous motor with reducer
  • Easy replaceable and cleanable PVC conveyor belt

Conveyors

  • Easy replaceable and cleanable PVC conveyor belt
  • Optional feeding and reject conveyors
  • Optional rollers type design (Specially for reject conveyor)
  • Adjustable conveyor height

User-friendly touch screen operation

  • IP65 front panel, highly detailed 7’’ color QVGA display panel pc
  • User-friendly software
  • Alphanumeric article name entry with 5 classification output range

Data Ttansmission

  • Limits and statistic report to USB memory
  • Host transmission with Ethernet
  • RS232C / RS485 output for remote display or serial printer
