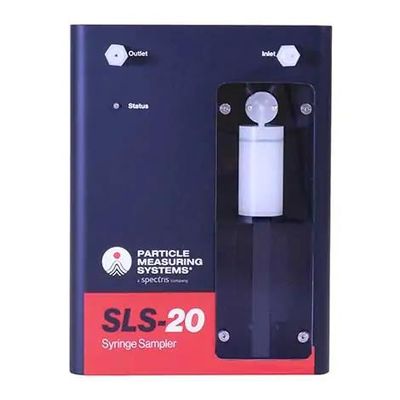

PMS - Model SLS-20 -Chemical Batch Sampler
Chemical batch sampler using Chem 20 and Chem 20-HI particle counters. The SLS-20 chemical batch Sampler enables Particle Measuring Systems’ Chem 20 or Chem 20-HI particle counters to operate in batch sampling applications. It is ideal for precise, small-volume sampling. For Chem 20 Batch Sampling.
The system consists of an SLS-20 for either corrosive or non-corrosive liquids, all connections necessary to interface with a compatible Chem 20 or Chem 20-HI particle counter and optional software.
Efficient and Eco-friendly: The SLS-20 boosts efficiency and reduces chemical waste through automation, promoting safety and improving environmental sustainability. Enabling chemical batch sampling with its small sample size (10% of the syringe size) and automation, the SLS-20 increases operational efficiency, reduces waste of expensive chemicals and contributes to enhanced safety in the workplace.
Particle Measuring Systems engineers, manufactures, installs, calibrates, repairs, and maintains the SLS-20 syringe liquid particle sampler.
- With SamplerSight software, includes data generation into pre-formatted report types and spreadsheets
- Internal leak detection
- Repeatable recipes for consistent sampling parameters
- Software for data collection and trending
- Optional password security
- 20 nm sensitivity provides unmatched level of process, chemical and filter monitoring
- Fluoropolymer syringe standard for use with HF
- Minimal chemical volume used
- Fully automated system
- Menu-driven data collection
- Extremely accurate measurements
- Compatible with corrosive and non-corrosive liquids
- Small volume chemical quality assurance
- Parts cleanliness testing
- Laboratory water sampling
- Industries: semiconductor, pharmaceutical, data storage, medical, aerospace, automotive
- Sampling chemical out of finished product packaging
- Sampling out of wet process tanks for process and filter monitoring
- With SamplerSight software, includes data generation into pre-formatted report types and spreadsheets
- Internal leak detection
- Repeatable recipes for consistent sampling parameters
- Software for data collection and trending
- Optional password security
- 20 nm sensitivity provides unmatched level of process, chemical and filter monitoring
- Fluoropolymer syringe standard for use with HF
- Minimal chemical volume used
- Fully automated system
- Menu-driven data collection
- Extremely accurate measurements
- Compatible with corrosive and non-corrosive liquids
- Small volume chemical quality assurance
- Parts cleanliness testing
- Laboratory water sampling
- Industries: semiconductor, pharmaceutical, data storage, medical, aerospace, automotive
- Sampling chemical out of finished product packaging
- Sampling out of wet process tanks for process and filter monitoring
- Syringe size: 50 ml (standard), 25 ml (optional)
- Sampling mode: Vacuum, Batch
- Wetted surface materials: Kel-F®, PFA, PTFE, Kalrez®
- Sample volume: Adjustable with software interface
- Sample temperature: 59 – 104 °F (15 – 40 °C)
- Dimensions (l x w x h): 10.0 x 9.0 x 12.3 in (25.4 x 22.9 x 31.2 cm), not including particle counter
- Weight: 14 lb (6.4 kg), not including particle counter
- Power: 100 – 240 V, 50 – 60 Hz
- Environment:
- Temperature: 50 – 86 °F (10 – 30 °C)
- Humidity: Non-condensing
