Lifeng - Chemical Dosing Device
The function of chemical dosing device is to dissolve powder flocculants or dilute liquid flocculants. Volume = DS Reference Treatment Capacity per hour of configured dewatering machine x Flocculants addition rate x Dilution ratio x Retention time.
Dosing Barrel
Description: It is composed of stirring motor, stirrer, feeding hole and clean hatch. It is used for small-scale projects and requires personnel supervision due to limited capacity.

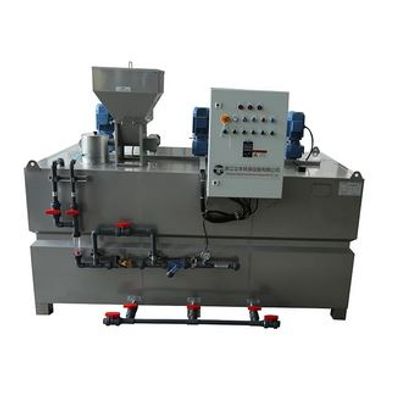

Auto-dosing Unit
This equipment is automatic continuous allocation and dosing system. Dry powder enters into pre-mixe from screw pro-peller underneath the hopper. The moist material enters into the allocation tank to make the thinning mixing. It will be allocated as per the requirement of customer. The allocation solution enters into storage tank from allocation tank after the curing. When the storage tank is in high liquid position, the allocation process stops automatically.When the solution drops to low liquid position, the allocation process, then, starts automatically. Both the allocation tank and curing tank set the mixer and guarantee the dilution and curing for the flocculants.
