LMI Pumps

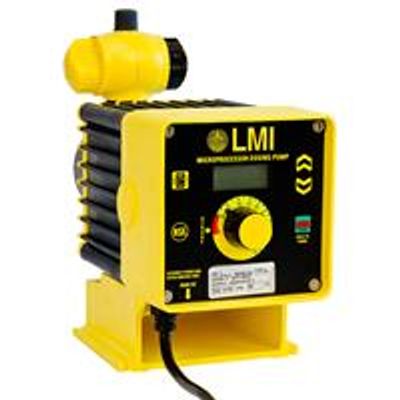

LMI - Model B Series -Chemical Metering Pumps
FromLMI Pumps
An industry standard for over 20 years, the Series B Chemical Metering Pump is a rugged, reliable choice for the harshest environments. Its 100% enclosed chemical resistant housing provides this unit with ultimate protection, making it ideal for corrosive chemical dosing. With a variety of models and options available, you have full flexibility to control stroke length and frequency, pressure capacity, pulse / 4.20 mA inputs and more.
Most popular related searches
chemical metering pump
metering pump
wastewater treatment industry
chemical meter
water treatment industry
industrial water treatment
wastewater treatment
water treatment
wastewater treatment system
chemical pump
- Rugged construction and time-tested design make the Series B pumps a consistent performer
- With rigid chemically-resistant housing and encapsulated electronics – this pump is designed to last year after year.
- Available with multiple options, the Series B pumps are able to accommodate a variety of applications
Standard Features
- Adjustable stroke frequency and the flexibility of up to 1000:1 turndown ratio
- Manually adjustable stroke length provides accurate pump output adjustment
- NEMA 4X/IP65 enclosures for protection against corrosive environments
- Time-tested electronics for reliable, repeatable performance
- Totally encapsulated electronics for protection against moisture and corrosive conditions
- Inputs for low level switch available on certain models
- Models with external pacing for flow proportional applications
- UL, CUL, NSF 50, NSF 61, NSF 372, CE Certifications
Optional Features
- Four function valve
- AUTOPRIME™ liquid End
- High viscosity liquid end
- Low level float switch
- Repair & preventive maintenance kits
- Calibration columns
The rugged construction and superior reliability of the Series B pumps make them an ideal product for a variety of applications in harsh environments, such as:
- Water Treatment
- Waste Water Treatment
- Industrial Processing
- Agriculture
- Chemical Processing
- Other – Contact your local representative
