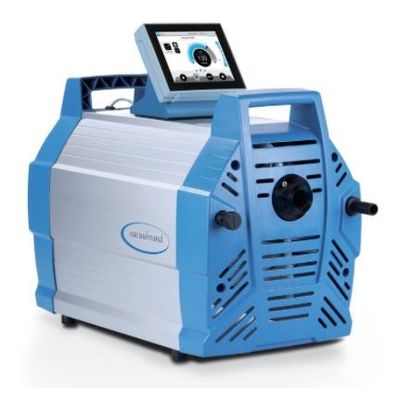

VARIO select - Model ME 16C NT -Chemistry Diaphragm Pump
The ME 16C NT VARIO select pump is an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. This single stage pump provides an advantageous combination of high pumping speed and 70 mbar ultimate vacuum that make it a great choice for evaporation of large quantities of low boiling point solvents. With pump heads constructed from chemical resistant fluoroplastics, and the proven PTFE sandwich diaphragm, our chemistry rated pumps feature unrivaled service intervals. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications.
The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process to meet process requirements. With VARIO control, the pump runs only as fast as is necessary. This extends the maintenance intervals and makes the pumping unit quiet.
- VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
- automatic boiling point detection and adjustment of the vacuum for short process times
- suitable for evaporation of large quantities of low-boiling solvents
- extraordinary diaphragm life for minimum operational and servicing costs
- Ultimate vacuum: 70 mbar
- Ultimate vacuum with gas ballast: 100 mbar
- Max. pumping speed 50 Hz: 19.3 m3/h
Type mains plug
- CE
- EUS
- Max. pumping speed 50 Hz: 19.3 m3/h
- Max. pumping speed 60 Hz: 11.4 cfm
- Ultimate vacuum: 70 mbar / 53 torr
- Ultimate vacuum with gas ballast: 100 mbar / 75 torr
- Number of heads: 8
- Number of stages: 1
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 25
- Outlet connection: Hose nozzle DN 15 mm
- Rated motor power: 0.53 kW
- Protection class: IP 40
- Dimension L in mm: 533 mm
- Dimension W in mm: 260 mm
- Dimension H in mm: 450 mm
- Weight: 28.9 kg
- Noise level at 50 Hz, typ.: 47 dBA
- NRTL certification: No
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Mains frequency 1: 50-60 Hz
