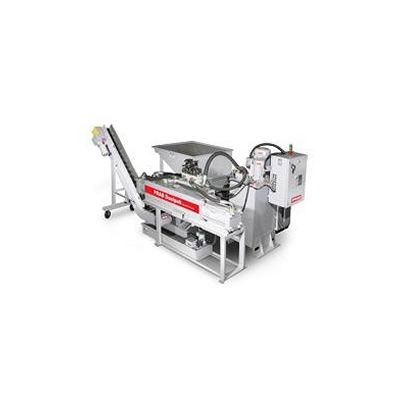

PRAB Dualpak - Chip Briquetter

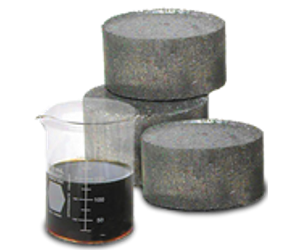

PRAB`s Dualpak briquetter by Neff Press increases the value of your metal chips, turnings and swarf by compressing it into solid briquettes. Augers feed chips into a compression chamber. Then two opposing hydraulic cylinders press the metal, squeezing out the cutting fluid or coolant and creating a compact, up to 99 percent dry, briquette.
Briquettes are easy to remelt, transport or store until you can get a better recycling price. You`ll also maintain a cleaner, more environmentally friendly shop. The Dualpak is effective at briquetting a wide array of metals, including aluminum, steel, cast iron, copper, brass, titanium, magnesium and others.
Choose from eight models to fit your application needs. Capacities up to 5,000 lb/hr (2 268 kg/hr) are available.

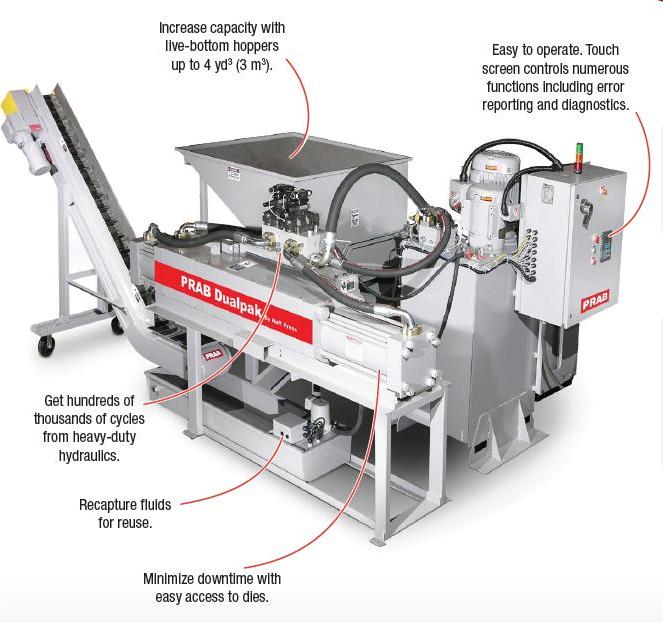

Features
- Get hundreds of thousands of cycles from heavy-duty hydraulics.
- Settling tank recaptures valuable coolants and cutting oils for reuse or recycling.
- Minimize downtime with easy access to dies.
- Touch screen controls numerous functions, including error reporting and diagnostics.
Options
- Increase capacity with live-bottom hoppers up to 4 yd3 (3 m3).
- Increase efficiency with water-cooled heat exchanger.
- Pivoting discharge conveyor can feed multiple containers.
- Increase the value of your aluminum, steel, cast iron, copper, brass, titanium, magnesium and other metal chips and turnings by compressing them into solid briquettes. Augers feed chips into a compression chamber. Then two opposing hydraulic cylinders press the metal, squeezing out any fluid and creating a compact, up to 99% dry briquette. System can be adapted to compress swarf, too.
- Maintain a cleaner, more environmentally friendly shop. Briquettes are easy to re-melt, transport or store until you can get a better recycling price.
- Choose the capacity you need from a variety of model sizes. All models come pre-wired for easier, more flexible installation.
