CIT 400 - Model CIT 400 - Process ...

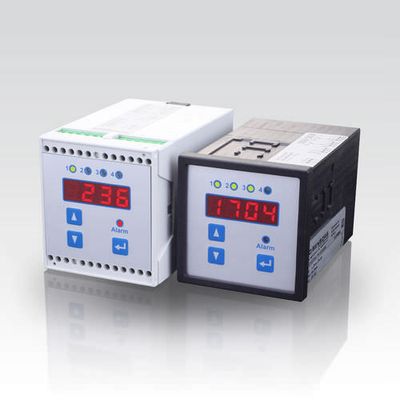

CIT 400 - Model CIT 400 -Process Indicator CIT 400

CIT 400
process display 72 x 72 mm with contacts and analog output
Features:
- 4-digit LED display
- input signal: 4 ... 20 mA
- housing variant: front panel or hat rail
- 2 or 4 limit value relays and 1 alarm relay
- scalable analog output
Optional Features:
- supply voltage 230 VAC
- Ex-approval
Functionality:
- free scalable display
- linearisation via max 32 free selectable supporting points
- switching mode delay of the relay inputs and outputs, parameterizable calibration
- simulation / testing mode
