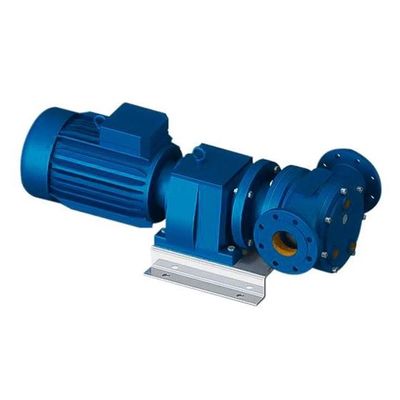

North Ridge - Model FIG180C -Close Coupled Internal Gear Pump with In-Line Flange Connections
Our internal gear pumps are designed to handle clean low – high viscosity lubricating fluids, being positive displacement pump types our FIG180C gear pumps are suitable for high pressure applications up to 10 bar depending on the model configuration selected. The pumping action is done by the rotation of intermeshing gears and a rotor designed to push the fluid at towards the outlet side of the pump, due to the extremely tight clearances between the gears these pumps are only suitable for lubricating clean liquids.
- Pump Type - Gear
- Max Flow Rate - 32M³H
- Max Head - 100M
- Max Temp - 70°C
- Max Viscosity - 55,000 cst
- Max Solid Passage - 0mm
- Self Priming - Y
- Pump Materials - AISI304, AISI316, Cast Iron, Cast Steel
- Inlet/Outlet Sizes - 25mm to 75mm
- Drive - AC Electric, Bareshaft
- Max Suction Lift - 8M
FIG180C Close Coupled Internal Gear Pump with In-Line Flange Connections
- Flow Rate Up to 32 m³/hr
- Head (Pressure) Range 1 - 10 bar
- Sizes Available 1 - 3”
- Operating Temperature Range 0 - 70°C
- Viscosity Range 100 – 250,000 SSU
- Drive Options Electric Motor + Gearbox
- Power Range 0.55 – 7.5 kW
- Construction Materials Cast Iron, Cast Steel, AISI 304 – 316 Stainless Steel
Some of the most common fluids our internal gear pumps are used for are fuels, oils, greases, resins and adhesives. Our gear pumps are manufactured according to CE standards and therefore comply with all current European quality demands and regulations, our simplistic design designed construction with only two moving/rotating components along with the exceptional tight clearance within the internal moving parts is the secret for our gear pumps high efficiency as there is almost zero slip whilst in operation meaning these pump`s energy consumption is minimal making them consequently a great option for continuous operation, (24/7) applications.
Our internal gear pumps can be supplied with external bypass valve and external heating jacket upon request, these pumps are also available with ATEX (explosion proof) motors for hazardous non-safe environments and applications, the FIG180C pump range is available with a variety of seal types such as mechanical seal, cartridge seal, packing seal and lip seals.
Thanks to having various construction materials along with a range of pump sizes, different sealing options and their 200 °C max. operating temperature our internal gear pumps can be used for a wide range of applications and almost any non-corrosive clean fluid specifically where a non-pulsating flow is necessary, they can also be supplied with marine class certification upon request hence are perfectly suitable for marine use.
- FIG180C close coupled internal gear pump with In-Line flange connections
- Available with several sealing options – cartridge seal, packing, single mechanical seal, lip seal etc.
- ATEX certified upon request
- High efficiency due to exceptional tight clearances
- Fantastic self-priming capabilities
- Optional external heating jacket
- Manufactured according to CE standards
- Max. fluids operating temperature 70 °C
- Available with external bypass valve
- Marine class certification upon request
- Coolant
- Kerosene/gasoline
- Diesel fuel
- Hot oil
- Grease
- Bitumen
- Asphalt
- Edible oils
- Crude oil and fuel oil
- Paint, resins, emulsions and coatings
- Soap and detergents
- Food process plants
- Heat transfer
