Hansa-Tmp - Model TPV 1300 BTB (Displ.6-21cc/rev) -Closed Loop System Axial Piston Pump

The new version guarantees:

• Higher fatigue resistance of pump bodies
• Lower noise
• Improved precision in the neutral position of the pump, which is reflected in better control of the machine
• Updated design and intervention on castings, according to the latest cast iron regulations and increase in performance of endurance tests of the pumps.

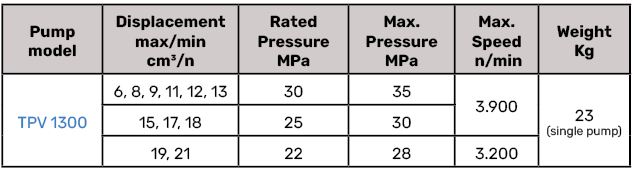

Displacement: 6, 8, 9, 11, 12, 13, 15, 17, 18, 19, 21 cm3/n
Pressure: 35 MPa

• Low noise level
• High rotation speed
• Compact design
• Suitable for multiple pump assembly

• Conversion flange from SAE A to SAE B
• Conversion coupling from Z.9 to Z.13
• Conversion flange from SAE A to SAE B + Conversion shaft from Z.9 to Z.13
• Flushing valve
• Screw by-pass
• Perforated screw by-passø0.8 for DMS control pumps
• Screw by-pass (rotated position of 180° – lower)
• Man on board (only SHI – SEI servo versions)
