ClydeUnion - Model Uniglide-e -Single and Two Stage Pump

SHARE

The ClydeUnion Pumps Uniglide-e range is the latest generation of axially split double entry pumps. The range has been developed using the latest 3D and FEA analysis software together with extensive consultation of major users. This has produced an advanced pump which will provide total reliability and reduced whole life costs.

Most popular related searches
axial split case
split case
cooling water
district heating water
vertical pump
corrosion protection
water treatment
water desalination treatment
axially split pump
water supply

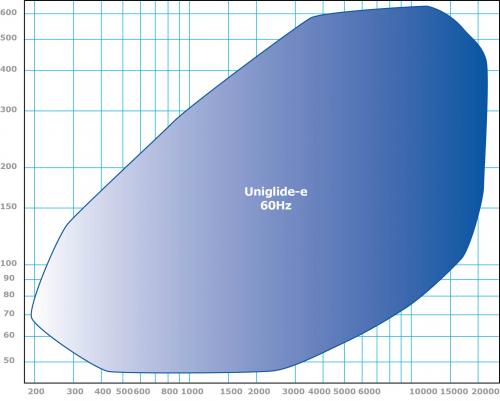

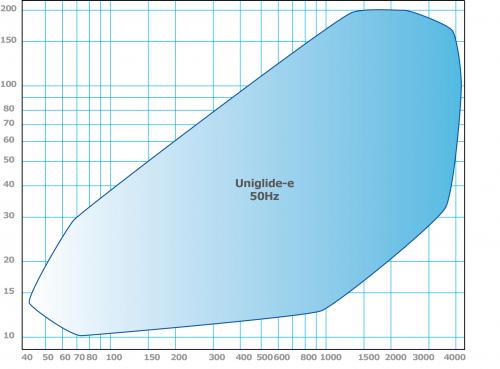

  • Capacity: up to 4,000 m3/hr / 17,600 gpm
  • Delivery head: up to 200 m / 650 feet
  • Temperature: up to 80 oC / 180 oF
  • Speeds: up to 1,800 rpm
  • Flange drilling: BS or ANSI
  • Desalination
  • Water treatment, supply and distribution
  • District heating and district cooling
  • Cooling water
  • Power auxiliaries
  • Mining
  • Metal manufacturing
  • Chemical and petrochemical industries
  • Irrigation
  • General industrial applications
  • Building services
  1. Low energy costs
    1. Hydraulic design provides low NPSH, stable characteristics and high efficiency further enhanced with internal coating on cast iron casings and polished internals for steel alloy applications
  2. Improved seal reliability
    1. Unique adaptor design allows fitment of all major suppliers cartridge seal assemblies
  3. Extended shaft life
    1. Shaft designed to minimise dynamic shaft deflection and provide ample safety factor in rotation speed, ensuring an extended shaft life
  4. Ease of maintenance
    1. Split casing design simplifies maintenance by allowing access to pump rotor without disturbing pipe work or driver. Additionally cartridge bearings and seals can be changed in a fraction of the time taken on a conventional axially split case product
  5. Increased component life
    1. Stainless steel impeller as standard and steel alloy impeller for selected applications, offer superior corrosion protection and optimum lifetime operation. Absence of impeller key eliminates the potential for fretting and fatigue failures. All spare impellers are mounted on a new shaft as standard
  6. Wear options
    1. For economical renewal of operational clearances, replaceable metallic wear rings are fitted as standard, which reduces pressure leakage and improves the overall efficiency. Composite wear rings are available as a standard option
  7. Double volute casing design
    1. Radial thrust reduced by utilising double volute casing design on all but smallest frames offering improved efficiency, minimised vibration and extended seal and bearing life
  8. Double entry impeller
    1. Hydraulically balanced impeller designed with optimised geometry provides high efficiency and low NPSH whilst minimising axial thrust for extended bearing and seal life
  9. Horizontal / vertical arrangement
    1. Rigid integrally cast feet allows mounting arrangement to be horizontal or vertical. Vertical pumps are fitted with a product lubricated bottom bearing as standard
