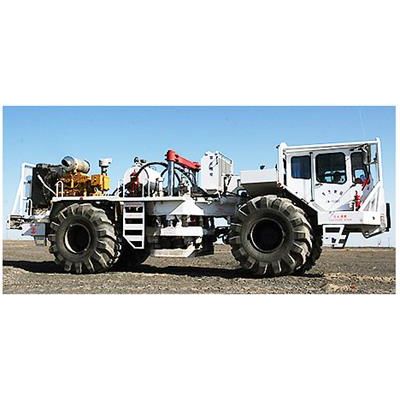

CNPC - Model KZ-34 -Vibrator Vehicle
The KZ34 Vibrator is a safe and powerful seismic source for land seismic exploration. It can be used for seismic exploration on plains or complex regions such as gobi and mountain foothills.
Most popular related searches
geophysics exploration equipment
seismic exploration
servo valve
hydraulic actuator
geophysics exploration
air conditioner
geophysics system
seismic
pressure control valve
hydraulic control valve
- Two guide columns with a stiff mechanical assembly, hydraulic oil lubrication
- Low center of gravity mass, servo-valve horizontal assembled
- Mass built-in rubber bag accumulator
- 2-step hydraulic control pressure-up valve
- High strength steel frame
- 4X4 hydraulic articulated classis with desert tires and wheels
- Powerful shift gearbox
- Hydraulic actuated internal wet disc brake, spring actuated wet disc for parking
- Two person cab, steel construction, wide-angle, air conditioner, a berth in back row
- Peak force: 391 kN (88000lbs)
- Frequency: 6－200HZ
- Gradeability: 60 %
- Max speed: 27 km/h
- Tires and wheels: 78X45－32
- Gross: 43 t
- Dimensions (length×width×height, mm):10600×3400×3460
