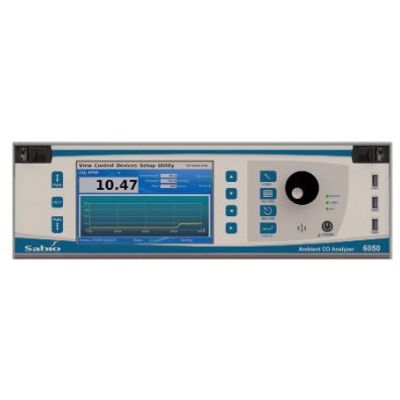

Sabio - Model 6050 -CO Analyzer
The Model 6050 CO Analyzer provides an accurate and convenient means of measuring low levels of Carbon Monoxide in ambient air. Principle of IR Analysis - Gas Filter Correlation. Advanced, easy to use, menu-driven software allows access to sample conditions and diagnostics and the strip chart feature allows the user to view a time series plot for CO readings. The 6050 Analyzer offers a bright color display, data logging capability and advanced communications via Ethernet, USB and RS-232.
Most popular related searches
carbon monoxide analyzer
gas filter correlation
ambient gas analyzer
ambient gas
sample conditioning
IR analysis
gas analyzer
gas filter
ambient air
gas monitoring
- Operating ranges: 1 to 200 ppm user selectable
- EPA approved ranges: 0-50 ppm
- Large color TFT LCD displays measured concentrations and graphs/ charts
- Touch screen, front panel keypad, external keyboard and mouse
- Menu driven software
- Internal memory for more than 2 years of data storage
- Ethernet (TCP/IP), USB and RS-232 ports
- Front panel USB connections for peripheral devices and firmware updates
- Automatic temperature and pressure compensation
- Comprehensive internal data logging
- Modbus RTU and TCP protocol
- Universal Line voltage in the range of 90-260 VAC, 50/60Hz
- External filter (back panel)
- Calibration by dilution
- Internal Zero/Span valves
- 4 - 20mA current outputs
- Additional gas measurement module
- Four independent analog outputs with flexible ranges
- 8 digital input/outputs (l/Os)
- Internal filter (front panel)
- Internal Pump
- EPA Approved Range: 0-50 ppm
- Noise: < 0.02 ppm
- Lower Detectable Limit: < 0.04ppm
- Zero Drift: < 0.1 ppm per 24 hours
- Span Drift: < 0.5 % of reading per week
- Precision: 0.5% of full Scale
- Linearity:
- Sample Flow Rate: 0.5 to 1.01PM
- Operating Temperature: 5° to 45° C
- Power Requirements: Universal Power Supply, 90-264 VAC, 100 VA, 50/60 Hz
- Voltage Output Ranges: 200 watts 0.1V.1V.2V, 5V, 10V,
- Input/Output Ports: Rear Panel: Ethernet, USB Device, USB Host (2), RS-232/485 (2)
- Physical Dimensions: 5.25 in. x 17 in. x 22.5 in.
- (HxWxD): (133 x432 x571.5 mm)
- Weight: 25 lbs. (10.3 kg)
- Certification: US EPA: RFCA-0817-248
