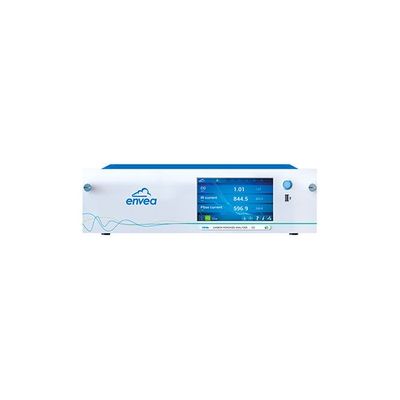

ENVEA - Model CO12e e-Series -CO / CO2 Carbon Oxides Analyzer
FromENVEA
Non Dispersive Infra Red Carbon Monoxide, criteria pollution monitor for CO measurements in the range 0-50ppm. CO2 monitoring as option. The CO12e analyzer is an Eco-designed, reference air quality monitor, QAL1 certified by the TUV, US-EPA approved and compliant with ISO 4224. It offers superior metrological performances for CO measurements in the range 0-300 ppm. CO2 monitoring as an option (range: 0-2000 ppm by NDIR).
Most popular related searches
industrial fence line monitoring
air quality monitoring
NDIR hydrocarbons
ambient air quality monitoring
fence line monitoring
CO2 monitoring
2008/50/EC
continuous emissions monitoring system
stationary monitoring system
ambient air quality
- Cost-saving analyzer with ultra low power consumption, 24 V supply (option) and able to withstand temperatures up to 45-50 °C without air conditioning
- Excellent sensitivity & signal stability, great accuracy and repeatability
- Real-time calibration graph, animated synoptic, auto-diagnostic, control and maintenance data screens can be displayed while the instrument is operating
- Service assistance inside: detects early signs of trouble, allows predictive maintenance, identifies the needed service and guides service operations step by step: increased productivity on site, reduced downtime, more efficiency, less training…
- Includes Communication Protocol for XR® Software with automatic recognition and configuration
- Automatic recognition of plugged electronic boards or optional devices: plug & play principle
- Smart, connected instrument with embedded web server for the easiest, full remote control and operation of the analyzer from any PC, tablet or smartphone (configuration, calibration, test, diagnostic parameters…)
- Continuous indoor and outdoor air quality monitoring
- Stationary and mobile AQMS laboratories
- Industrial fence-line monitoring
- Continuous emissions monitoring (CEM) by dilution
- Background (urban or suburban), Rural, Traffic, Kerbside measurement campaigns and monitoring studies
- Laboratory and field studies on CO effects
Measurable parameters
- Pollutant: Range(ppb):
- CO: 0-300 / 6000:
- CO2(%): 0-20:
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
(*) Min/Max based on 100/200 Dilution Rate (other ranges & dilution rates available upon request)
Technical Specifications
- Sampling technology: Dilution
- Sample transfert: non heated polytube
- back flush function: YES
- span injection: YES
- Built-In O2 option: NO
- Serial link communication: Optional
- 7’’ TFT colour touch screen
- Other Communication: Ethernet
- Analogue OUTPUTS: Optional
- Analogue INPUTS: Optional
- Dimensions (mm):
- Version (19” Rack):
- 483 x 545 x 133 mm (D x W x H)
Main Options
- Wireless module (in standard with the no-screen version)
- Built-in CO2 monitoring module (range: 0-2000 ppm by NDIR)
- RS232 or RS485 Serial interface (via USB port)
- External opto-isolated I/O interface with:
- 4 independent analog inputs
- 4 independent analog outputs
- 4 remote control inputs
- 6 dry contacts outputs
- 24 V (option)
Compliance With:
- EN 14626 (2012), EN 15267, 2008/50/EC, 40 CFR PART 53 SUB B & SUB C
- QAL 1 certified by the TÜV to N° 0000050626
- U.S. EPA approved as compliant with RFCA-0915-228
