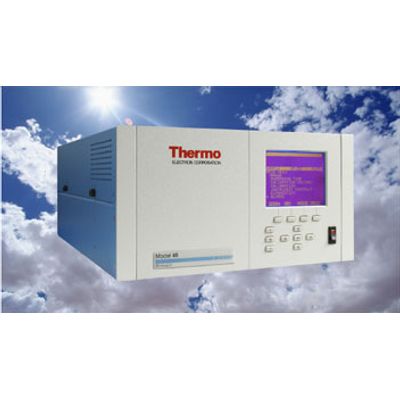

Thermo Fisher Scientific - Model 48i -CO Gas Analyzer
Using gas filter correlation technology, the Model 48i measures the amount of carbon monoxide in the air. The Model 48i is based on the principle that carbon monoxide (CO) absorbs infrared radiation at a wavelength of 4.6 microns. Because infrared absorption is a nonlinear measurement technique, it is necessary for the instrument electronics to transform the basic analyzer signal into a linear output. The Model 48i uses an exact calibration curve to accurately linearize the instrument output over any range up to a concentration of 10,000ppm.
This state-of-the-art gas analyzer offers features such as an ethernet port as well as flash memory for increased data storage. Ethernet connectivity provides efficient remote access, allowing the user to download measurement information directly from the instrument without having to be on-site.
You can easily program soft-keys to allow you to jump directly to frequently accessed functions, menus or screens The larger interface screen can display up to five lines of measurement information while primary screen remains visible.
Key Features:
- Ethernet connectivity for efficient remote access
- Enhanced user interface with one button programming and large display screen
- Flash memory for increased data storage and user downloadable software
- Enhanced electronics design optimizes product commonality
- Improved layout for easier accessibility to components
Custom Ranges : 0-1 to 10000 ppm 0-1 to 10000 mg/m3
Zero Noise : 0.02 ppm RMS (60 second averaging time)
Lower Detectable Limit : 0.04 ppm
Zero Drift (24 hour) : < 0.1 ppm
Span Drift (24 hour) : +/-1% full scale
Response Time : 60 seconds (30 second average time)
Precision : +/-0.1 ppm
Linearity : +/-1% full scale < 1000 ppm +/-2.5% full scale > 1000 ppm
Sample Flow Rate : 0.5-2 liters/min.
Operating Temperature : 20°C - 30°C
Power Requirements : 100 vac, 115 vac, 220-240 vac +/-10% @ 275W
Size and Weight : 16.75”(W) x 8.62”(H) x 23”(D), 49 lbs. (22.2 kg)
Outputs : Selectable Voltage, RS232/RS485, TCP/IP, 10 Status Relays, and Power Fail Indication (standard). 0-20 or 4-20 mA Isolated Current Outout (optional)
Inputs : 16 Digital Inputs (standard), 8 0-10vdc Analog Inputs (optional)
