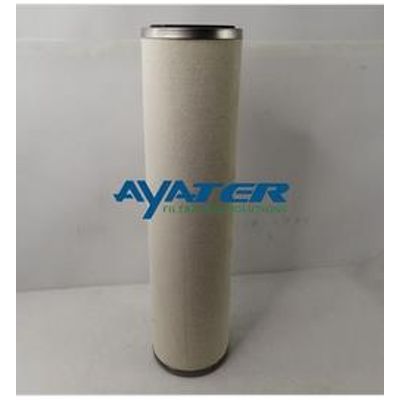

AyaterModel I-628-MMTB -Coalescer Cartridge

SHARE

Designed by AYATER for particle separation and removal of contaminants from hydrocarbon fuels, this coalescer cartridge utilizes a aggregation mechanism to effectively remove highly dispersed water droplets and other particles, making it ideal for applications in the aviation fuel and gas industries. The amount of flow depends on factors such as fluid viscosity and operating conditions.

Most popular related searches
  • Type: Coalescer/Separator Element
  • Model: I-628-MMTB
  • Filtration accuracy: 0.4um
  • Seal: Buna-N
  • Filter materials: Fiberglass
  • Length: 28 inches
  • Inner diameter: 3.5 inches
  • Outside diameter: 6 inches
  • Maximum differential pressure: 5.2 bar/75 psi
  • Operating temperature: 66-71 °C/150-160 °F
