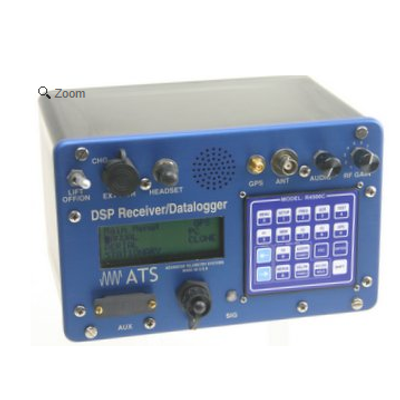

ATS - Model R4500CD -Coded Receiver-Datalogger

• Allows up to 100 multiple tags on a single frequency
• 4 MHz range, 4000 channels scannable
• Integrated GPS logs location data
• 3 modes: Unattended, Aerial, Manual
• Remote data communication option available
• Specify a 4 MHz range between 30 - 52 MHz or 140 - 220 MHz when ordering

Modes & Operators Inputs

Manual Mode

• Manual operation
• Isolate TX codes: one, all or none

Aerial Mode

• Isolate TX codes
• Frequency
• Table #(1-12)
• Scan rate
• GPS (On/Off)

PC Mode

• Off-load data
• Upload and download frequency tables (Excel format)

Clone Mode

• Transfer tables from one R4520C (Master) to another R4520C

Stationary Mode

• Frequency
• Table # (1-12)
• Scan Time
• Time out
• Store rate
• Antennas scanned (1-8)
• Remote Data Platform (RDP) or goes (On/Off)
• Reference transmitter (Yes/No)
• Reference transmitter store rate

Display (4 line by 20 characters)

Aerial/Manual Mode

• All detected TX codes displayed using scroll function
• Frequency (Manual mode)
• Table #, channel # and frequency (Aerial mode)
• GPS status
• Signal strength
• Battery status

Stationary Mode

• Table #, channel # and frequency
• Date and Time
• Antenna #
• Signal strength
