UVDI - Model V-MAX -Coil Cleaning - Designed for in-duct use

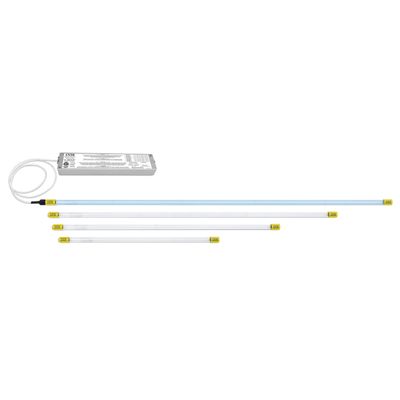

Flexible and Simple Installation: Designed for duct-mounting parallel to the airstream providing optimum UV exposure; Prewired lamp connection reduced installation time; Low power consumption with universal voltage; Available in 21”, 33”, 48” and 61” lamps
- Rated for temperature 30°F — 135°F (-1°C — 57°C)
- RH: up to 95% non condensing
Regulatory Approvals
ETL listed to UL/Canadian standards:
- UL 1598/CSA 22.2 250
- UL 1995/CSA 22.2 236
- UL 153/CSA 22.2 12
Healthy Air Supply
UV energy destroys bacteria and mold that grow on the moist coil and drain pan surfaces eliminating “blow-off” of these into the air supply. This ensures that clean airflow is cooled by the coil without cross contamination.
Better Comfort
Coil disinfection prevents biofilm accumulation on fins resulting in effective heat transfer with better temperature and humidity control.
Energy Savings
Maintaining a coil free of microbial growth will maximize coil heat transfer efficiency and reduce energy consumption up to 15% in some systems.
Reduced Maintenance Cost and Less Downtime
UV energy ensures the cooling coil remains clean at all times, eliminating costly coil cleaning maintenance and reducing system downtime.
