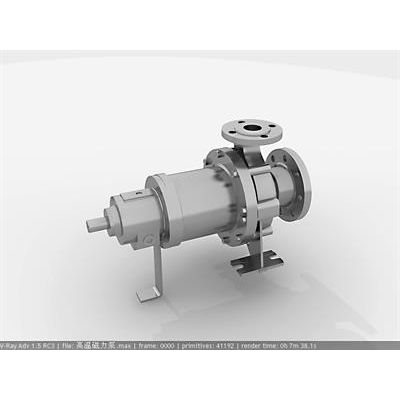

Colossus - Model CNA -Magnetic Drive Pump
Single-Stage, Horizontal, Radial Split Volute Pump. Axial Direction Suction and Radial Discharge. Standard Suspension Structure Design with Foot Support. Radial single-suction impeller.
Most popular related searches
Performance range:
- Flow: 3－600m3/h
- Head: 4－240m
- Power: ≤160kw
Model Description:
- For example 40-250A
- C-Dandong Colossus Group Co.,Ltd
- N-New structure magnetic pump
- A-Petrochemical industry flow pump
- 40-Pump outlet diameter(mm)
- 250-Impeller diameter(mm)
- A-Impeller for the first time cutting
Structure:
- A: Impeller diameter<250mm1.pump casing 2.Impeller 3.Shaft 4.Support plate 5.Pump cover 6.Diver shaft 7.Bearing box 8.Sleeve 9.Sliding bearing 10.Thrust button 11.Inter rotor 12. Outer rotor 13.Spacer sleeve 14.Auxiliary support 15. Impeller Nut
- B: Impeller diameter≥250
