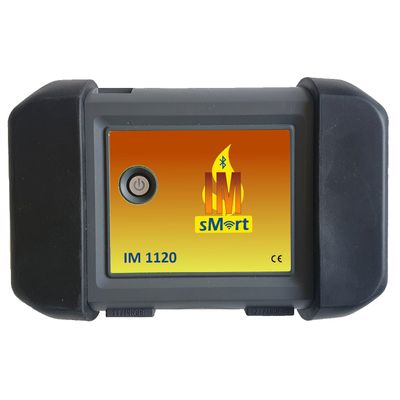

IMR - Model IM 1120 -Combustion Gas Analyser with IM-Smart App
The IM 1120 Flue Gas Analyser with its new, innovative HMI concept is controlled via the IM-Smart app and ensures simple operation, handling and evaluation for the user. Free IM-Smart app for remote operation of the IM 1120 with a tablet or smartphone. Various measurement modes with report generating function are available: Flue gas analysis - Differential Temperature - Oxygen Gap - CO Ambient - Soot Number Entry. Reports can be downloaded or shared as PDF documents. Rugged enclosure with magnetic mount.
Most popular related searches
continuous emissions monitoring system
gas analysis
gas analyzer
flue gas analysis
gas sampling probe
emissions monitoring system
flue gas analyzer
continuous emissions monitoring
combustion gas analyzer
combustion gas analysis
- Remote controlling the IM 1120 via Bluetooth app (Android, iOS)
- Users can create their own profile
- Customer profiles can be created
- Reports are saved and can also be downloaded as PDF documents
- Reports can be shared as PDF documents with the user`s own contacts
- Gas Sampling Probe: Sheath 200 mm; Hose 2,5 m
- Rechargeable Battery: Li-Ion, > 6h
- Dimensions: 150 x 100 x 58 mm
- Weight: 490 g
- Operating Conditions: -10°C to 50°C; 10 –90 % rH, non-condensing
- Approvals: According to EN50379 Part 1 and 3
- IM 1120
- Gas samplingprobe
- Condensationtrapw/ filter
- Ambient probe
- Power supplywithUSB cable
- Ruggedcase
- IM-Smart App (Download)
Part No. 11200
