LUMINOR - Model K2 5.0 -Commercial/Industrial UV Water Disinfection

Designed & manufactured to ASME pressure vessel standards, these 316L stainless steel reactors are fully flanged on one end to allow for easy internal access. Using the most powerful, coated, low pressure amalgam UV lamps, K2 models offer a 12,000 hour lamp life.

Monitoring is provided through an integral LCD display which outputs remaining lamp life, total running hours, audible & visual lamp failure, remote-on and dry contacts.

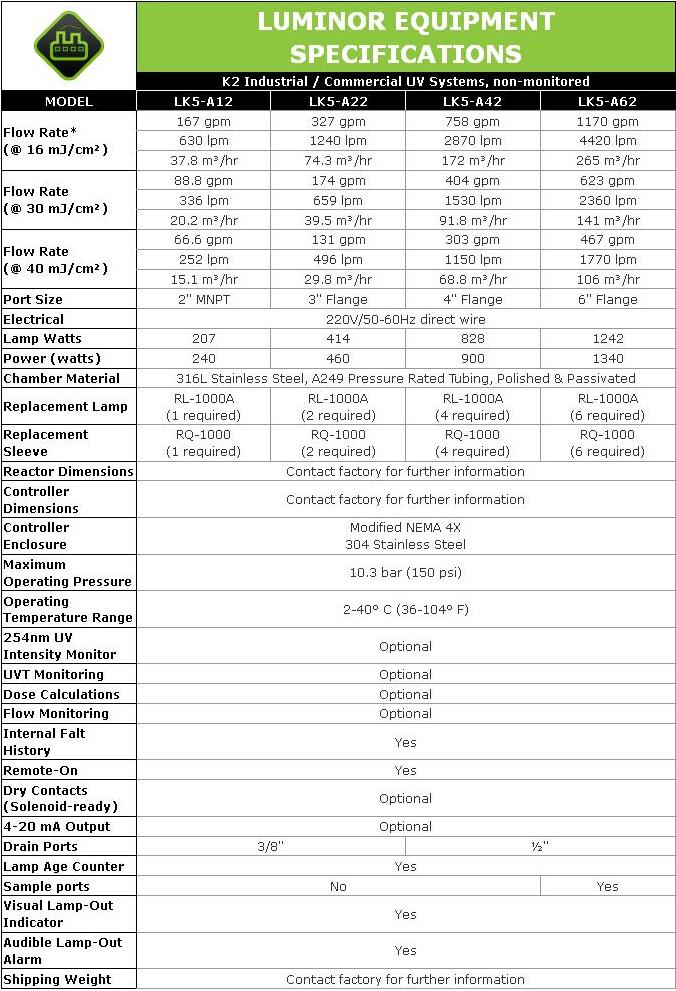

Packaged with constant current electronic ballasts and housed in a Nema 4X stainless steel control panel, four models are available in flow rates of 325, 650, 1500 & 2400 lpm (85, 175, 400 & 625 gpm).

LUMINOR’s K2 line of disinfection systems are specifically designed and built to handle the challenging environments of process and manufacturing industries as well as pool and leisure applications.

Unsure about needing a UV sensor or if regulations require you to add a sensor? There is no need to replace the entire system......simply add a UV sensor module to the K25.0 reactor as it comes with an integral sensor port built in! Plug the optional UV sensor into the pre-wired controller and the UV intensity will be displayed on the LCD output.

Constructed with highly polished 316L stainless steel reactors and stainless steel enclosures, K25.0 uses proven low pressure amalgam (LP-AM) lamp technology for maximum power density and efficiency all in a small footprint.

Controlling microbiological (bacteria & virus) issues in water (or other viscous fluids), including E.coli , Cryptosporidium and Giardia lamblia is safe and simple with LUMINOR UV systems. UV does not affect the aesthetic quality of the fluid and the process does not add anything to the fluid, nor create any disinfection by-products.

Covering a wide variety of applications in both regulated and unregulated markets, K2 offers environmentally friendly disinfection at lower capital and operating costs than traditional disinfection solutions.

• Modular 304 stainless steel control panel with LCD display for remaining lamp life, total running hours, audible & visual lamp failure, remote-on and dry contacts
• 316L stainless steel, polished reactors with flanged end-plate
• Designed & manufactured to ASME pressure vessel standards
• Flow rates stated at 95% UVT at a dose of 30 mJ/cm2
• User friendly bayonet style lamp connectors (quick ¼ turn removal with no extra tools needed)
• True gland seal retaining nuts with positive stop
• Reliable, industry proven low pressure amalgam (LP-AM) coated UV lamps with ceramic bases for durability and a 12,000 hour lamp life
• Constant current electronic ballasts
