Ceiling Guard - Model Standard Series -Commercial Water Leak Sensors

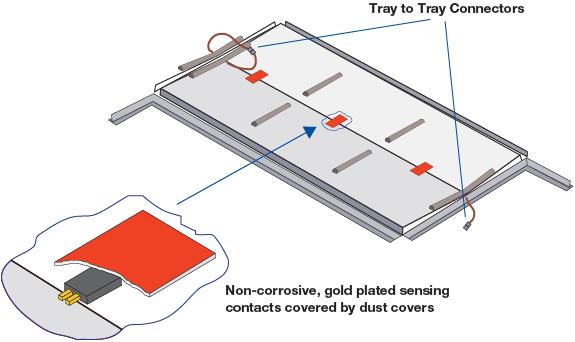

The Dorlen Products` Ceiling Guard Water Leakage Sensing System are water leak sensors used to sense small amounts of water/liquid leakage above 2`x4` or 2`x2` suspended acoustical ceiling tiles. The water leak sensors are made up of low profile (1/2` ht.) `troughed` sensing trays which contain small sensing contacts. These trays are fastened to the top side of the conventional drop-in ceiling tiles. The trays are interconnected to form zones of protection.
The zones, in turn, are terminated in a Dorlen Water Alert detector. The zoned water leak detection systems are designed to detect and provide indication of small amounts of leakage before the leakage accumulates to the point of leaking through, or along the edges of the tiles to the area below. Installing Ceiling Guard provides a very high degree of protection against leakage from concealed piping and the roof or floors above the suspended ceiling.
Installation of the Ceiling Guard water leak sensors are very simple, while individual panel removability and overall ceiling appearance is retained. Ceiling Guard water leak sensors can be used with new or existing suspended ceilings. Ceiling Guard is an extension of, and works in conjuction with Dorlen`s Water Alert detectors. Water Alert systems have been installed in over 21,000 sites since 1975.

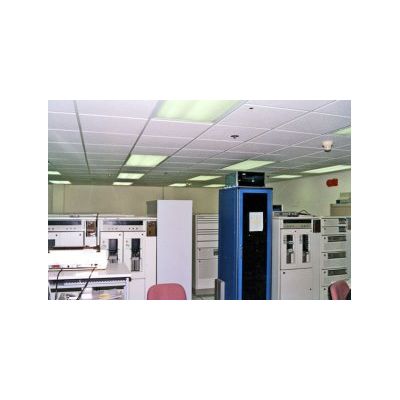

Water Leak Detection System For Data Centers, Computer Rooms, Hospital Diagnostic Departments, Electrical / Telecommunication Rooms, Archives, Art Galleries, Museums, Military / Aerospace Control Centers,Telephone Centrals,Record, Tape, Disc Storage Areas, Libraries, Utility, Communication Control Centers, Process Industry Control Centers.
