WirelessEZ - Communication Interface (Radio Modem)
The WirelessEZ Communication Interface (radio modem) is compatible with the the SiloPatrol® SE (SMU) "smart" cable-based sensor, RadarRight non-contact level sensor or Flexar guided wave radar level sensor. It can also be used for wire-replacement applications for equipment not manufactured by Monitor Technologies (consult factory for details). Communication between the sensors and an operator interface like the HMI2 control console or the SiloTrack PC or CLOUD inventory management software is accomplished via half-duplex (2-wire) RS-485 communication format. The WirelessEZ Communication Interface can be used to replace the RS-485 wiring between the sensors, the HMI2 or the PC. The WirelessEZ Communication Interface can be used to lower the cost of some installations and to overcome obstacles that make hardwiring impractical or impossible.
- Provides wireless communication for the SiloPatrol SE SMU, RadarRight or customer-supplied sensors utilizing half-duplex RS-485 communications.
- Overcomes physical obstacles to wiring
- Eliminates half-duplex RS-485 sensor communication wiring & reduces installation costs
- Suitable for wire-replacement application(half-duplex RS-485)
- Easy set-up...radio channels & communication / serial ports are pre-programmed at the factory based on your rquirements
- High reliability with frequency-hopping spread-spectrum technology
- Long range 900MHz band
- Universal 85 to 265 VAC power supply
The WirelessEZ Communication Interface uses proven frequency-hopping spread-spectrum technology, operating in the 900MHz band, to communicate between two points. The 900MHz band is a FCC license-free band and offers greater transmission distances, better signal transmission through obstructions and lower signal loss than other available higher frequency bands.
The WirelessEZ Communication Interface has a durable powder-coated die cast aluminum housing and is provided with a mounting bracket that can be used for affixing to a flat surface or pipe / railing. Each transceiver includes RS-485 half-duplex (2-wire) interface.
With reliable and affordable technology, the WirelessEZ Communication Interface can be used to lower the cost of installation and to overcome obstacles that make hardwiring impractical or impossible.
The WirelessEZ Communication Interface uses proven frequency-hopping spread spectrum technology, operating in the 900MHz band, to communicate between your PC running SiloTrack Server software, the SiloTrack CLOUD Gateway or HMI2 control console and individual or groups of SiloPatrol® SE (SMU) "smart" sensors or RadarRight non-contact radar sensors. The 900MHz band is a FCC license-free band and offers greater transmission distances, better signal transmission through obstructions and lower signal loss than other possible frequency bands.
Frequency-hopping spread-spectrum radio technology utilizes a band of frequencies between 900-928MHz and continuously "hops" or switches frequencies during radio transmission enhancing reliability and minimizing disruption of the telecommunications. The spread-spectrum enables a signal to be transmitted across a frequency band that is much wider than the minimum bandwidth required by the information signal. This reduces interference and allows for increased data communication.
Flexibility
The WirelessEZ Communication Interface can be utilized in numerous applications, even with multiple sensor networks and over 100 sensors. Each sensor network will require a wireless modem/transceiver at the PC. A wireless modem/transceiver is also required at the sensor(s) location. SM, RadarRight and Flexar sensors need to reside on separate RS-485 networks.

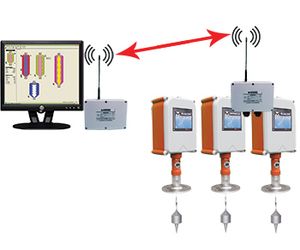

- Single Network/Point-to-Point: One transceiver is located at the PC and one at a group of sensors or at a single sensor. If used with a grouping of sensors located in close proximity, the sensors would be wired together with the transceiver.
- Single Network/Multiple-Point: One transceiver is located at the PC and one transceiver at each of multiple groups of sensors within a single network or one transceiver at each sensor.

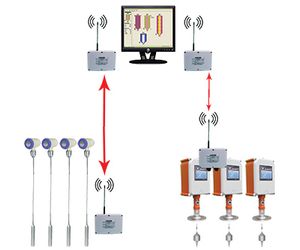

- Multiple Networks/Point-to-Point: One transceiver for each network of sensors at the PC and one transceiver at each network group of sensors.
- Multiple Networks/Multiple-Point: One transceiver is located at the PC for each network and one transceiver at each of multiple groups of sensors within each network or one transceiver at each sensor within each network.
The WirelessEZ Communication Interface has a powder coated die cast aluminum housing that is suitable for indoor or outdoor mounting and is provided with a mounting bracket that be used for mounting on a flat surface or pipe/railing.
A choice of antenna is provided (standard or high gain).
Radio channels & communication / serial ports are pre-programmed at the factory based on your rquirements:
- Select communication protocol: SMU, RadarRight, Flexar or customer - specified
- Select radio channel #: 1-10, Channel #1 is standard
- Power Requirements: 85 to 265 VAC (±15%); 8VA; 50/60Hz
- Ambient Operating Temp: -40° to +150° F (-40° to +65° C)
- Data Input Signal: RS-485 half-duplex, isolated
- Alt. Data Input Signal: RS-232, isoltated
- Wiring Distance: 3,279 ft. (1,000 m)
- Radio Output: 900MHz (North America); 1W
- Radio Sensitivity: -110dBm
- Conduit Entry: Two (2) 0.88in (22.4mm) dia. holes
- Indicators:
- Orange LED: Tx
- Yellow LED: Rx
- Green LED: Power
- Housing: Powder coated die cast aluminum, IP66
- Mounting: Desk, wall or pipe/rail
Monitor Technologies LLC warrants each WirelessEZ Interface it manufactures to be free from defects in material and workmanship under normal use and service for two (2) years from the date of purchase. The purchaser must notify Monitor of any defects within the warranty period, return the product intact, and prepay transportation charges. The obligation of Monitor Technologies LLC under this warranty is limited to repair or replacement at its factory. This warranty does not apply to any product which is repaired or altered outside of Monitor Technologies` factory, or which has been subject to misuse, negligence, accident, incorrect wiring by others, or improper installation. Monitor Technologies LLC reserves the right to change the design and/or specifications without prior notice.
