ASM Dimatec - Compact Adhesive Application systems

The adhesive units will be laid out according to their eventual application. Important criteria in determining the layout are, for example, the viscosity, whether it is manual or automatic application, whether cold or warm adhesive processing is to be carried out, whether 1-component or 2-component adhesives are to be used and a variety of application procedures.

Whether for individual application or as an adhesive technology supplier for complex automatic units for OEM customers – we offer you a wide spectrum of adhesive and primer application technologies. You`ll find our units for adhesively attaching diverse glass fittings worldwide in automobile, truck and bus production.

Manual application

Manual application systems are designed in accordance with the requirements of the customer and taking account of the packaging sizes that are to be processed.

Additionally, the decision on the type of pump to be used (scoop piston pumps, ball valve piston pumps, spiral pumps, gear pumps, diaphragm pumps and combinations of different types of pumps) will depend upon the type of adhesive that is to be used and the dosing requirements. Here, the drive type can be either pneumatic, hydraulic or electric. The processing temperature of the adhesive can range from room temperature up to 200 degrees Celsius.

Primer application

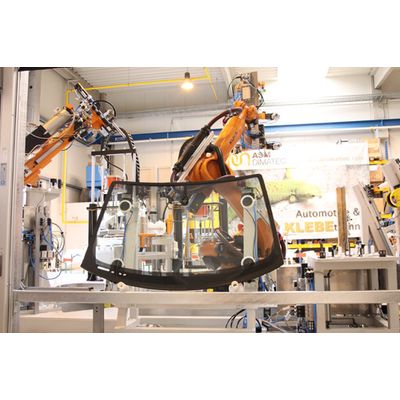

Automatic cleaning and primer application units with industrial robots. With this, a disc is cleansed and then primered using a special technology before the PU application. The cleaning is conducted with felt featuring an automatic delivery, a special brush or a spraying device. As such, the disc surface is immediately cleansed and primered right before the adhesive application and assembly in the vehicle. This automatic technology is especially interesting for manufacturers of automobile glass panes that are delivered to the final assembly lines pre-produced.

With each application system, there is a material hose (heated, when necessary) that is customized especially for each customer to the length required for the application. The application gun that is to be used by the operator has an appropriate application head for each different type of application (caterpillar, airless, swirl spraying, wide slot and flatstream).
