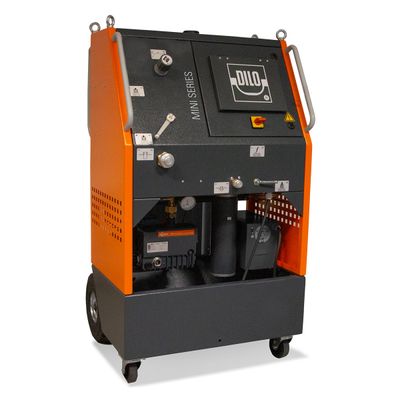

DILO - Model SF6 - B143R11V4 -Compact and Mobile SF6 Gas Reclaimer
Service carts for small gas compartments The service carts of the Mini Series for liquid gas storage meet all requirements for efficient gas handling in the medium voltage range and thus, allow gas recovery down to < 5 mbar. Equipped with the well-proven DILO components these service carts enable the recovery, filling and purification of SF6 gas as well as the evacuation of small gas compartments. This series offers semi-automatic operation via a 7" touch screen. Equipped with four solid tyred wheels, the devices can be conveniently moved on uneven and gravel ground.Most popular related searches
SF6 gas
SF6 gas recovery
digital weighing scale
gas recovery
SF6
digital weighing
weighing scale
SF6 recovery
liquid storage
dry filter
Equipped with four solid tired wheels, the SF6 recovery unit can be conveniently moved on uneven and gravel ground. The integrated tool box keeps hoses and accessories tidy. Thus the B143R11 is a compact, efficient and user-friendly device complying with the requirements in the MV field.
- Device for liquid storage of SF6 gas
- SF6 gas recovery down to < 5 mbar
- Semi-automatic control and 3.5" colour touch panel
- DN20 coupling for recovery, evacuation and filling operations
- Digital weighing scales for SF6 bottles
- Residual gas recovery down to 5 mbar during filter change
- Reduction to transport pressure as integrated special function
- Dimensions: L 690 mm, W 750 mm, H 1,300 mm
- Weight: 180 kg (without storage bottle)
Standard equipment:
- Oilfree DILO compressor (1.6 m3/h [at 50 Hz], 50 bar; 1.9 m3/h [at 60 Hz], 50 bar)
- Vacuum compressor for SF6 gas recovery (3.3 m3/h, final vacuum < 5mbar)
- Vacuum pump for air (16 m3/h, final vacuum < 1 mbar)
- Dry filter
- Particle filter
- Pressure reducer
- Digital weighing scales for SF6 bottles (with automatic switching off), 0 - 120 kg with tare function, accuracy ± 20 g
- Indication in bar / mbar, Pa, psi / torr (reversible on the touch panel)
- SF6 bottle connection with W 21.8 x 1/14“ thread
- 3.0 m long connecting cable
- Paint: orange (RAL 2004)
- Operating manual
Operating voltage:
- 220 - 240 V / 50 - 60 Hz alternating current
