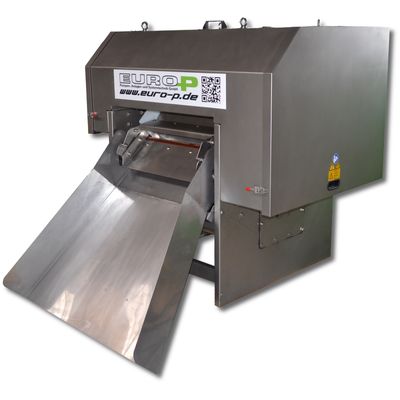

EURO-P - Model Separator 1000/600 -Compact and Rugged Solid-Liquid Separator

The Rollenseparator 600 / 1000 delivers a high-wear, energy-efficient solution for solid-liquid separation, available with drum widths of 600 mm and 1000 mm to suit various throughput requirements. Its rolling compression principle minimizes friction, pressing fibrous solids from slurry through gravity-driven, rubber-coated rollers. This method reduces strain and achieves high-quality filtrate even with abrasive media. Built entirely from stainless steel in direct media contact, the separator performs reliably under harsh industrial and agricultural conditions—processing liquids with up to 30% total solids that remain pourable. Nutrients like phosphorus adhere to separated fibers, enhancing resource retention in the solid fraction.

• Separation of slurry in cattle, pig, or biogas systems

• Solid-liquid separation in food production lines (e.g., slaughterhouses, breweries)

• Pre-treatment for manure handling or biogas digesters

• Situations requiring separation under abrasive, high-solids conditions

• Improving storage volume utilization and nutrient retention

The liquids which are going to be separated are pumped in at the back of the machine. Using the ER2 pump a homogenous slurry is provided as the integrated chopping facility of the pump and its outstanding ability to do the agitation and pumping at the same time makes for perfect pre-conditioning of the slurry. The raw slurry flows onto the rotating stainless screen drum, the liquid fraction runs down into a collecting tray and is discharged to the side of the machine. An overflow prevents overfilling, no readjustments to the input pump are needed (e.g. to compensate an unsteady flow while the level in the pit is going down). The suspended fibrous materials and other solids get “squeezed out” in two steps in between the rubber-coated compression rollers and the screen drum. At the front of the machine the separated dry matter gets scraped off by a synthetic scraper from the rotating screen and slides down on the front chute.

• motor nominal power: 1.5 kW
• operating voltage: 230 2~, 50 Hz or 400 3~, 50 Hz
• inlet spigot: square flange 180x180
• spigot for outflow of liquid fraction: 110 mm
• spigot for overflow/return: 160mm
• connection for washdown water: 3/4"
• drive: chain-drive with gear reducer
• compression rollers: Designed with a flexible core and hardwearing rubber coating. Rollers are spring-load mounted on a lever arm.
• throughput: 4-40 m3/h
• separated solids: Up to 30% dry matter content, stackable

Specifications for separation are empirical values at common application parameters; with reservation and depending on the input raw material.

• Separator 1000: 68-60-100
• Separator 600: 68-60-060
• Separator Platform 1000: 68-60-105
• Separator Platform 600: 68-60-065
• Electric Control Box for Separator: 68-60-200
