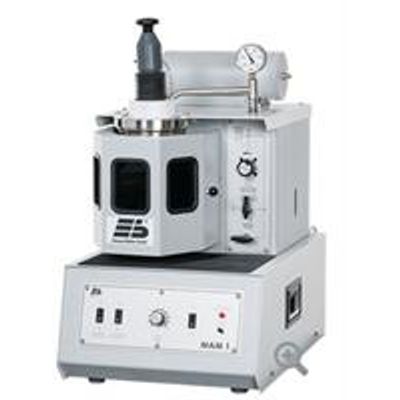

Edmund-Bühler - Model MAM-1 -Compact Arc Melter
Designed for melting samples of approx. 5-20 g up to 3500°C, sufficient for most laboratory purposes. Small melting chamber ensures fast evacuation and low gas consumption. Freely movable, water-cooled electrode. Dismountable, water-cooled copper crucible plate with trough-shaped moulds. Crucible plates with customized moulds on request. Reliable, contactless ignition of the arc. Powerful arc melting generator, integrated in the housing. Pressure manometer and valves for evacuation and gas inlet into the arc melting chamber.
Most popular related searches
water flow control
water cooling
pump system
vacuum pump
material science
recirculating chiller
flow control
cooling water
eye protection
crucible
- Small roughing pump (can be built in) or turbomolecular pumping system (stand-alone unit) for evacuation of the melting chamber
- Safety functions:Protection against over-temperature, eye protection
- Dimensions: (w x d x h): 430 x 650 x 750 mm
- Connection : 230 V / 50/60 Hz / 1-phase
Details
- Quantity: 5 – 20 g per charge
- Temperature: up to 3500°C, depending on quantity
- Generator: built in
- Connection: 230 V / 50/60 Hz (different voltage on request)
- Crucible plate: standard crucible plate or customized crucible plates
- Options: Special cold crucible (suction casting), Vacuum pump, Turbomulecular pumping system HVT52/G, High vacuum gauge, Water flow control, Recirculating chiller
