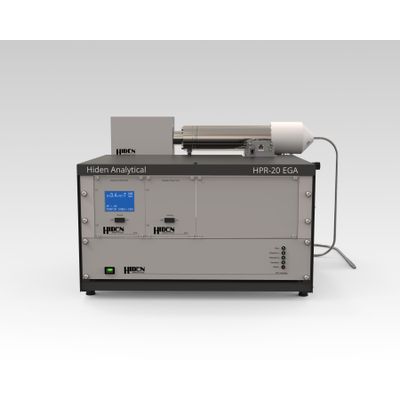

Hiden - Model HPR-20 EGA -Compact Benchtop Gas Analysis System

The Hiden HPR-20 EGA is a bench top mass spectrometer with QIC (quartz inert capillary) that samples from 100 mbar to 2 bar gauge and is included as standard.

The HPR-20 EGA system includes an external dry scroll pump to provide for high performance combined sample bypass and UHV foreline pumping, providing fast response and effective pumping for light gases.

Effective pumping for light gases enables the use of helium as the carrier gas for TGA-MS studies without compromise to sample flow and response. The benefit of using helium as a carrier gas of choice for TGA-MS studies is the reduced mass spectral interference with helium, compared to nitrogen or argon for example.

The HPR-20 EGA system has mass range 200 amu (300 amu option) and with a detection capability from 100% to less than 100 part-per-billion.
An extensive range of MS inlets for optimised coupling the HPR-20 EGA mass spectrometer to TGA systems is offered to suit an existing TGA, or OEM partner TGA equipment.

The TGA interface includes re-entrant furnace sampling, providing close coupling to the TGA furnace region for optimized evolved gas/vapour analysis.

Custom designed interfaces are available for special requirements with alternative systems being offered for applications requiring direct sampling from advanced thermogravimetric analysers operating at higher pressures to 30 bar.
