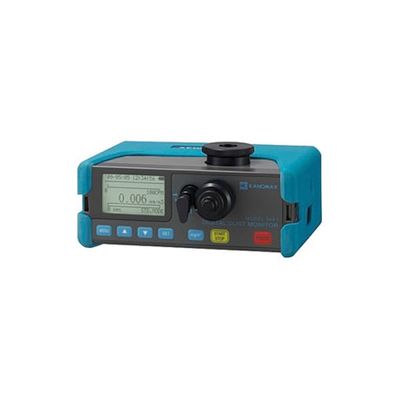

Kanomax - Model 3443 -Compact Digital Dust Monitor

Dust monitoring for industrial hygiene, health and safety

Product Features

• Measures aerosol concentrations corresponding to PM10.
• The intake isolates the aerosol sample so that the optics chamber is kept sterile for improved reliability and low maintenance.
• This measures 0.1 to 10µm particle size aerosol contaminants such as fumes, dust, smoke and mists.
• Battery-operated, data-logging, light-scattering laser photometer that gives you real time aerosol mass readings.
• Suitable for clean office settings well as harsh industrial workplaces, construction and environmental sites, and outdoor applications.

• Measures PM 10 particle matters, such as dust, fumes, and smoke
• Real time and long term measurements of dust concentration
• Compact and lightweight unit
• PC interface with USB and software for downloading data to your PC
• Analog output controls other devices
• Data logging up to 100,000 measurements and displays MIN / MAX / AVG and Timing graph for review
• Complete with rubber protector, shoulder strap, data processing software, USB cable, AC adaptor, 2 pcs LCD protective sheet, rubber cap, 2 pcs filter
• Calibration certificate

• IAQ Investigations
• Industrial Hygiene
• Occupational Health & Safety
• Contamination Exposure Monitoring
• Manufacturing Process Control

Measurement Specifications

• Measuring Method: Light Scattering Method
• Measuring Object: Airborne Particle Matter 0.1 to 10 µm
• Measuring Range: 0.001 to 10.0 mg/m3
• Accuracy: +/- 10% of reading

General Specifications

• Light Source: Laser diode
• Data Logging: 100,000 data and time stamped measurements
• Interface: USB
• Output: O to 1 V, Pulse, Alarm
• Power Supply: 6 AA batteries or AC adapter
• Dimensions: W 6.4″ x H 4.3″ x D 2.4″ (162 x 109 x 60mm)
• Weight: 2.9 lbs. (1.3 kg)
• Warranty: 1 year
• What’s Included: Meter, Operation manual, Data processing software, USB cable, AC adapter, Rubber protector, LCD protective sheet, Shoulder strap, Filter, NIST TRACEABLE CALIBRATION certificate
