Geovent - Compact Extraction Arm

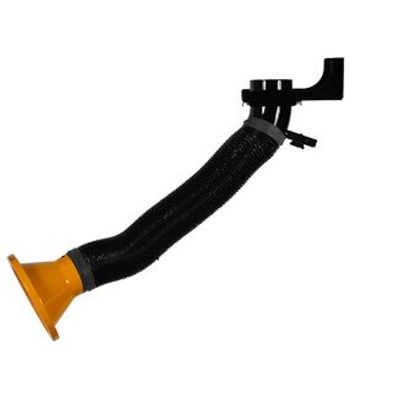

The COMPACT arm is a space-saving extraction solution designed for areas with low ceilings, such as welding booths. With its telescopic function and 360° rotation, it combines powerful suction with easy maneuverability. Ideal for tasks where space and time are limited, the arm is perfect for smaller welding projects and can be mounted on walls or ceilings for versatile use.
- Compact design ideal for low ceiling spaces.
- Telescopic arm for adjustable reach and flexibility.
- 360° rotation for complete maneuverability.
- Durable, lightweight hood available in ø160 or ø200 mm.
- Space-saving when not in use – easily pushed upwards.
- Compatible with extension arms for up to 8 meters reach.
- Easy installation with wall or ceiling mounting options.
The COMPACT arm is an innovative extraction solution designed to meet the needs of workplaces with limited ceiling height, such as welding booths and other compact environments. Its telescopic design offers a perfect balance between the strong suction capacity of larger arms and the effortless maneuverability of smaller arms, making it highly versatile and user-friendly.
With a space-saving design, the COMPACT arm can be easily pushed up and out of the way when not in use, ensuring minimal interference with your workspace. Its 360° rotatable mounting ensures maximum flexibility, allowing you to position the arm precisely where it is needed.
The COMPACT arm is available in two telescopic lengths: 1-2 meters and 1.4-3 meters. For larger workspaces, it can be extended up to 8 meters by integrating an extension arm. It comes with lightweight hoods in ø160 mm and ø200 mm, manufactured from durable powder-coated aluminum. The ergonomic handle ensures ease of operation, while accessories such as integrated lights and nets can be added to enhance functionality.
The arm’s robust hose is made from GEOFLEX Weld material, which is a durable and lightweight PVC tape hose reinforced with a steel wire spiral. It is suitable for a wide range of applications, offering a temperature range of –10°C to +60°C (briefly up to +110°C).
The COMPACT arm is designed for wall or ceiling mounting and can be used with a separate fan or a central extraction system, making it adaptable to a variety of setups. Perfect for smaller welding tasks where time, space, and efficiency are crucial, the COMPACT arm delivers optimal performance without compromise.
- Max. air volume: 1,500 m³/h
- Dimensions: ø160 or ø200 mm
- Dimensions (LxWxH): L = 1,000 – 2,000 mm
- L = 1,400 – 3,000 mm
- Temperature: 60°C – short-term 110°C
- Weight: 12.8 – 14 kg
