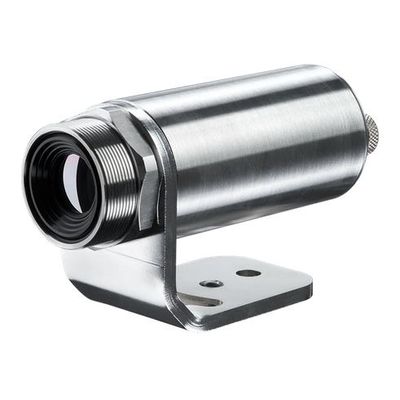

Optris - Model Xi 80 LT ETH -Compact Industrial Autonomous Spot Finder Thermal Camera

The Xi80 LT ETH uses uncooled bolometer technology. As a result, it offers a cost-effective and robust design without moving optical components. Its compact housing suits fixed installations. Furthermore, optional water cooling, air purges, and protective enclosures extend operation to harsh environments. In addition, standardized interfaces and mounting options simplify integration.

Connection is possible via USB or Ethernet. However, the camera can also operate fully autonomously. Functions such as automatic hot-spot detection, direct analog output (0–4–20 mA), and support for fieldbus protocols (Ethernet/IP, Modbus TCP/IP, RS-485, Profinet) allow direct integration into control loops. A motorized focus, moreover, enables remote adjustment of measurement targets.

The Xi80 LT ETH runs at 50 Hz, which makes it suitable for monitoring fast processes. Advanced functions of the thermal camera, including line scanning and image merging, are available in the PIX Connect software. This smart thermal camera platform also supports radiometric recording, analysis, and data export. Additionally, developer kits are offered for OEMs requiring custom software integration.

Designed and manufactured in Germany, the Optris Xi80 is a compact and reliable tool for industrial monitoring. Thanks to its combination of affordability, robust construction, and imaging functionality, it sets a new standard for fixed-installation infrared cameras in production, quality assurance, and research.

Xi 80 LT ETH Smart Thermal Camera - Important Features:

• Small-sized rugged thermal camera with motorized focus
• Distance-to-spot-ratio up to 190:1 with sighting capabilities
• Autonomous operation with automatic spot finder
• Direct analog and digital outputs

The Optris Xi 80 thermal camera of the Xi series is an innovative, affordable, high-quality, and precise non-contact thermal infrared camera. The thermal imager operates in the long-wavelength infrared range (LT: 8 to 14 µm) and captures data to provide accurate surface temperature measurements. The Optris Xi80 thermal imager meets industry needs with wide temperature measurement ranges, accuracy, and customizable field-of-view settings.

The Xi80 thermal camera leverages affordable infrared detector prices and a unique design to significantly reduce the cost of remote industrial temperature measurement. This well-built, budget-friendly industrial thermal camera serves measurement applications better than a single-spot pyrometer. The infrared camera captures the heat patterns, offering operators insights into their thermal processes.

Designed and built for industrial use, this low-resolution thermal imager (80 x 80 pixels) effectively gathers temperature data across a wide range from -20 °C to 900 °C. The Optris Xi80 infrared camera boasts an impressive distance-to-spot-size ratio of up to 190:1, ensuring accurate temperature measurements even from a distance. This superior ratio outperforms modern pyrometers‘ optical capabilities, allowing detailed monitoring of distant targets. Moreover, the motorized focus feature enables users to adjust focus remotely on their temperature measurement targets. The industrial and robust design of the Optris Xi80 thermal camera ensures reliability in demanding environments, making it an essential tool for process engineers who need accurate infrared temperature measurements in manufacturing. Its compact, durable, and waterproof design is perfect for fixed installations or mounted setups, ensuring durability in various industrial settings.

Optris imaging systems represent uncooled forward-looking infrared (FLIR) thermal imaging cameras optimized primarily for stationary use. These thermal cameras have an uncooled two-dimensional imaging detector that generates radiometric thermal images in the infrared wavelength range without mechanically rotating or oscillating mirrors. Using uncooled bolometer technology contributes to a more reliable, cost-effective, and robust design, particularly when compared to traditional line scanner applications.

Furthermore, these infrared cameras can autonomously seek thermal hot spots, enhancing their utility and efficiency in various monitoring and inspection tasks. The thermal cameras are designed, developed, and manufactured in Germany.

The main interface for the Optris Xi80 infrared camera is either USB or Ethernet, allowing for connection to a computer. However, the thermal camera’s smart, autonomous operation allows for seamless integration into a control loop, providing infrared temperature data without the need for complex software coding or additional computers. The infrared camera features an automatic spot finder, direct analog output (0-4-20 mA), and is compatible with industrial fieldbus systems, including Ethernet/IP, Modbus TCP/IP, RS-485, and Profinet, making it a top choice for original equipment manufacturers. The Xi80 thermal camera‘s autonomous operation mode enables easy integration into machinery, eliminating the need for specialized software skills or a large budget.

The Optris Xi80 thermal camera runs at a framerate of 50 Hz, which allows for monitoring fast processes. Furthermore, more advanced software features, such as line-scanning or image merging, are available with the PIX Connect software. PIX Connect is essential for researchers looking for an affordable infrared camera with a strong software platform for thermal image processing and temperature data collection. Developer kits are offered for integrators creating application-specific software solutions.

These innovative features improve the infrared camera‘s ability to make accurate and reliable surface temperature measurements in various applications, from quality control in manufacturing to condition monitoring and research and development tasks. The flexibility of the Xi80 thermal camera ensures smooth integration into various industrial setups. With its advanced features, the Optris Xi80 thermal camera sets a new standard for fixed-install infrared imaging, offering a cost-effective and powerful solution for a wide range of industrial applications.

The Xi80 infrared camera is compatible with a broad range of accessories for harsh environments, including a water-cooled housing that extends its operating temperature range to 250 °C. Air purges keep the lens clean, ensuring continuous temperature measurements even in dusty conditions. The assortment of compatible accessories also includes mechanical mounting options, electrical interfaces, and connection cables, all at an attractive price.

Furthermore, these infrared cameras can autonomously seek thermal hot spots, enhancing their utility and efficiency in various monitoring and inspection tasks. These FLIR infrared cameras are designed, developed, and manufactured in Germany.

The primary interface of the Optris Xi80 infrared camera is USB or Ethernet for a connection to a computer. However, the smart autonomous operation allows the non-contact temperature camera to integrate seamlessly into a control loop, providing infrared temperature data without requiring extensive software coding or additional computers. The Xi80 thermal camera‘s autonomous operation mode allows easy integration of this smart infrared camera into machinery without software skills and a limited budget.

The Optris Xi80 operates at a framerate of 50 Hz – even without any additional computers, allowing the monitoring of fast processes. Additionally, more complex software functionality, such as a line-scanning or image-merging function, is accessible with the license PIX Connect software. PIX Connect is indispensable for researchers seeking an affordable infrared camera with a powerful software platform for thermal image processing and temperature data collection. Software developer kits are available for integrators developing application-specific software solutions.

These innovative features enhance the infrared camera‘s ability to provide accurate and reliable surface temperature measurements across various applications, from quality control in manufacturing processes to condition monitoring and research and development activities. The Xi80 infrared camera’s flexibility ensures seamless integration into various industrial setups, enhancing the thermal camera’s adaptability to specific requirements. With its advanced features, the Optris Xi80 thermal camera sets a new standard for fixed-install infrared imaging, providing a cost-effective and powerful solution for diverse industrial applications.
