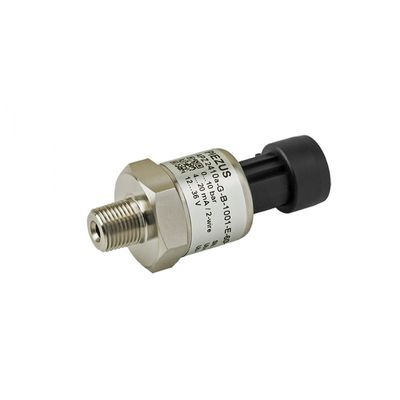

PIEZUS - Model APZ 2410 a -Compact line pressure transmitter
FromPIEZUS LLC
APZ 2410a compact line pressure transmitters are primarily offered to OEM manufacturers at special prices and in MOQ of 50 pieces per part number. Based on a monolithic ceramic measuring cell, highly resistive to abrasive and aggressive(*) media, APZ 2410A is a good fit for the applications where hydraulic shocks (water hammer) are not present. APZ 2410a supports ZERO TRIM feature by use of ZCON 100 configurator (**).
(*) please consult the manufacturer for particular media compatibility
(**) ZCON 100 configurator is sold separatelyMost popular related searches
pressure transmitter
compact pressure transmitter
water hammer
hydraulic hammer
water hydraulics
temperature cable
Ranges: 1 bar up to 40 bar
Pressure type: gauge
Accuracy: ±1%
Output: 4...20 mA / 2 wire
Sensor: ceramic thick film
Pressure port: G1/4”; 1/4” NPT; 1/8” NPT; 7/16”-20 UNF etc.
Electrical connection: Packard Metri-Pack, DIN 43650C, AMP-Superseal 1.5, cable gland
Media temperatures: -25...+135 °C
Ambient temperatures: -40...+85 °C
OEM applications
Pneumatics
Hydraulics*
Automotive
(*) Applications with absence of excessive hydraulic shocks
